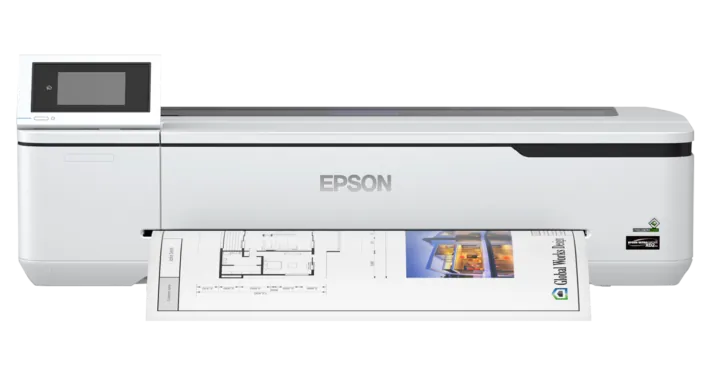

Epson SureColor SC-T2100

SC T2100 is a CAD and technical printer for architects, construction teams, engineers that need accurate, dependable large-format output.

Key benefits

  • Compact technical printing designed for dependable day-to-day CAD output
  • Supports fast turnaround on drawings, plans and presentation graphics
  • Well suited to teams that need accuracy without over-specifying the system
  • Sharp lines and text at up to 2,400 x 1,200 dpi
  • Four pigment inks: black, cyan, magenta and yellow
  • Compact body, 970 mm wide and 27 kg without ink

Features

  • Release Date: May/2020

Print Performance

  • Print Technology: PrecisionCore print head; pigment ink (UltraChrome XD2)
  • Print Speed: A1 in 43 s (CAD draft, plain paper)
  • Print Resolution: 2,400 x 1,200 DPI (min. line width 0.07 mm; line accuracy +/- 0.26%)
  • Minimum Line Width: 0.07 mm

Ink & Colour

  • Ink / Toner Type: UltraChrome XD2 pigment ink
  • Ink Colours: 4-colour: Matte Black, Cyan, Yellow, Magenta. Cartridges: Black 50ml/80ml; Cyan/Yellow/Magenta 26ml/50ml
  • Printhead: 800 nozzles per colour (800 Black, 800 per colour)

Media Handling

  • Maximum Media Width: 24 in roll (also 17 in); sheet sizes up to B1/A1/A2/A3/A4/B2/B3/B4
  • Media Handling: Auto sheet feeder, auto cutter, auto-switch front/rear, roll paper; roll capacity diameter 119 mm, weight 4,200 g
  • Maximum Roll Diameter: 119 mm
  • Media Thickness: Up to 0.3 mm
  • Compatible Paper Thickness: 0.05 mm – 0.27 mm
  • Applications: Technical & CAD drawings; architectural plans; general office documents; advertising posters

Scanning

  • Scanner: Not built-in; optional external scanner supported (Epson WorkForce DS-6500 or DS-60000)
  • Functions: Print only (scan via optional external scanner)

Workflow

  • Memory: 1 GB (printer)
  • Connectivity: USB 3.0, Ethernet 1000 (1000Base-T/100Base-TX/10Base-T), Wireless LAN 802.11b/g/n, Wi-Fi Direct; Apple AirPrint, Epson Cloud Solution PORT
  • Print Languages: ESC/P-R, HP-GL/2, RTL, TIFF, JPEG
  • Colour Mode: 4-colour (CMYK pigment)

Physical

  • Dimensions: 970 x 505 x 230 mm (W x D x H)
  • Weight: 27 kg
