Print straight onto rigid boards and skip the mounting.
Printing direct to board takes printing, laminating and mounting vinyl out of rigid work. Whether it works for you comes down to your boards and your space.
Know your boards first.
What can it print on?
HP lists 14 rigid boards for the R530, from foamboard and Correx to ACM, wood and glass. Test any new board before a run.
Will the heat warp my boards?
HP Latex cures with heat, so thin plastics and Correx can bow until the curing temperature is set lower for that board, sometimes with a slower print mode.
How thick, big and heavy?
The R530 takes sheets up to 1.62 × 1.52 m (6 m long with extension tables), up to 51 mm thick and 68 kg. No maker publishes a minimum thickness.
What are you trying to solve?
Mounting printed vinyl onto rigid boards

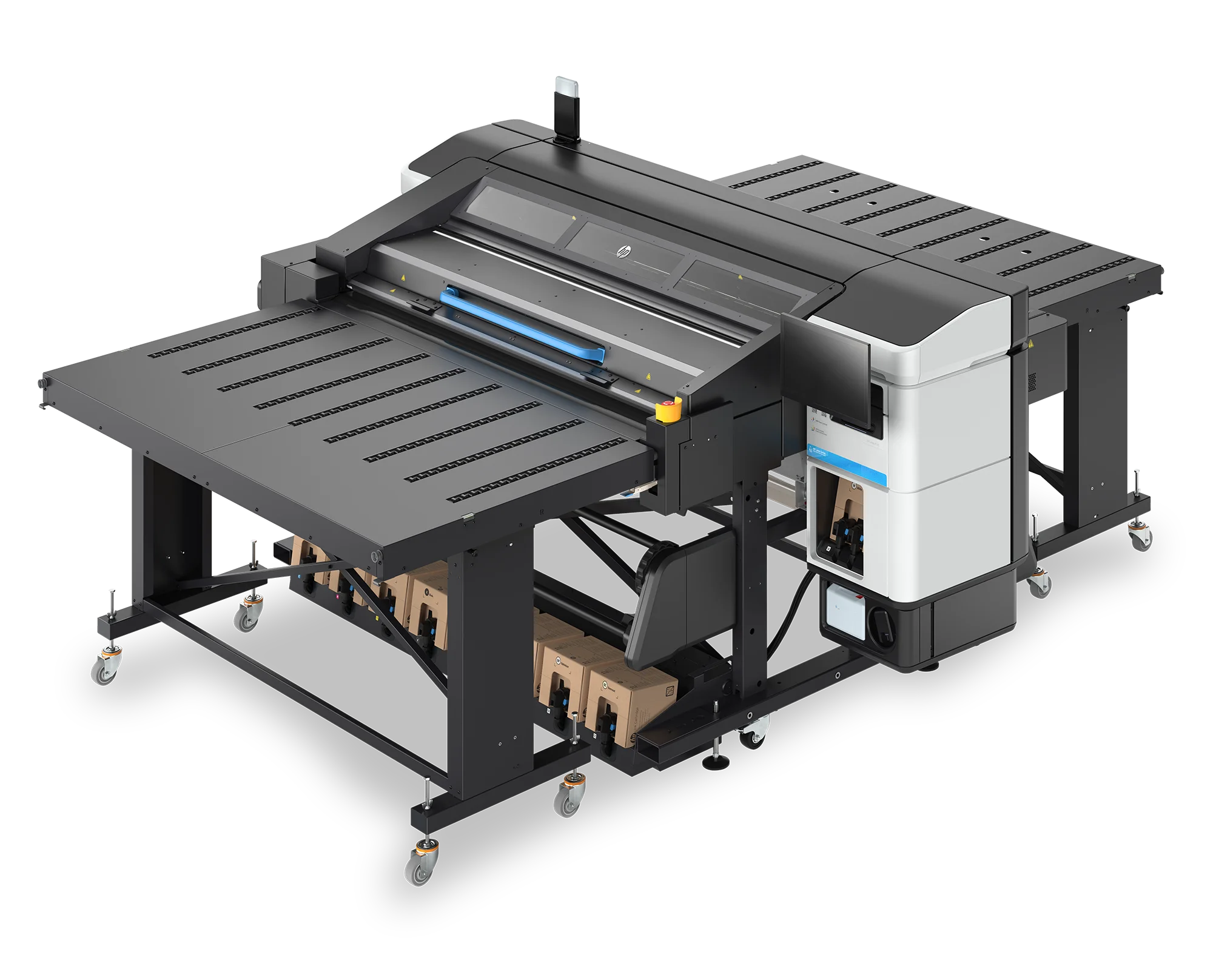

HP built the R530 for shops that mount vinyl today, and says it needs less space than a 4 × 8 ft flatbed. Plan on 15.5 m²/h in standard mode. Best fit: HP Latex R530. Single-phase power. Boards up to 68 kg, plus roll media. White ink built in, with an Overcoat for scuff resistance.
The machines.
Printing rigid with us.
Questions About Flatbed Printers.
What's the difference between a flatbed and a hybrid?
A flatbed holds rigid boards on a table while it prints. A hybrid, like the HP Latex R530, also takes roll media, so one machine covers boards and flexible jobs.
Can I print on Correx, Dibond or acrylic without primer?
The HP Latex R530 is rated for 14 rigid substrates, including Correx, foamboard, ACM, wood, acrylic and glass. Test every new board before a run.
Will the curing heat warp my boards?
HP Latex ink is cured with heat, so thin plastics and Correx can bow until the curing temperature is lowered for that board, sometimes with a slower print mode.
How thick and heavy can the boards be?
Up to 51 mm thick and 68 kg on the HP Latex R530, with sheets up to 1.62 × 1.52 m (6 m long with extension tables). No manufacturer publishes a minimum thickness.
What do I need on site?
The HP Latex R530 runs on single-phase power. We'll ask about your space and access before you order.
Can a flatbed print white ink?
Yes — white is built in on the HP Latex R530, with two white printheads as standard.
Tell us what you print on.
Name your boards and how many you run. We'll tell you which machine handles them — call 01483 596 200.
