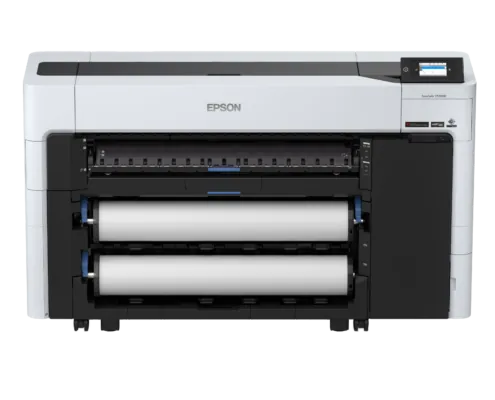

Epson SureColor SC-T5700D

Epson SC-T5700D is a 36-inch dual-roll technical printer designed for architects, engineers, reprographics and other professional print environments.
Key benefits
- Prints up to 36 inches (914 mm) wide, from A4 sheets to A0 on roll
- Adobe PostScript 3 built in for accurate PDF and design files
- Up to 130 m² per hour for fast runs of plans and posters
- Two rolls loaded at once, each up to 170 mm in diameter
- Six-colour ink set, including red, with photo and matte black
- Up to 2,400 x 1,200 dpi in maximum quality mode
Features
- Release Date: Sep/2021
Print Performance
- Print Technology: UltraChrome XD3 6-colour pigment ink (Pk, Mk, C, Y, M, Red); Adobe PostScript 3 built in
- Print Speed: Up to 130 m²/hr
- Print Resolution: Max quality 2,400 x 1,200 DPI; draft 300 x 600 DPI; speed mode 300 x 600 DPI (min. line width 0.26 mm; line accuracy +/- 0.1%)
- Line Accuracy: ±0.1% (or ±0.26 mm, whichever is greater)
- Minimum Line Width: 0.02 mm addressable (0.08 mm printed)
Ink & Colour
- Ink / Toner Type: UltraChrome XD3 pigment ink; 350ml or 700ml cartridges
- Ink Colours: 6-colour: Photo Black, Matte Black, Cyan, Yellow, Magenta, Red (each 350ml/700ml)
- Printhead: Lifetime printhead (up to 78,000 A1 prints on matte paper); 3.5pl Variable-Sized Droplet Technology
Media Handling
- Maximum Media Width: 36 in dual roll (also 17 in, 24 in); custom width and length; sheets up to A0/A1/A2+/A3+
- Media Handling: Auto cutter, auto take-up reel, borderless print; roll capacity: 2 rolls, each 170 mm diameter, 10,200 g weight
- Maximum Roll Diameter: 170 mm
- Media Thickness: Roll and cut sheet 0.07–0.8 mm; board 1.5 mm
- Applications: Technical drawings; advertising posters & temporary outdoor advertising; print-shop & enterprise production
Scanning
- Scanner: Not applicable — print-only model
- Functions: Print only; 28 security features (NFC, PIN/password authentication); emulations ESC/P, PDF 1.7, HP-GL2, RTL, Adobe PostScript 3
Workflow
- Memory: 4 GB
- Connectivity: PC, Mac, Network, Mobile Device, Cloud, Direct USB; Apple AirPrint, Epson Cloud Solution PORT, Epson Smart Panel App; optional self-encrypting 960GB SSD
- Colour Mode: 6-colour pigment (CMYK + Red + extra Black)
- Print Languages: Adobe PostScript 3, PDF 1.7, ESC/P, HP-GL/2, RTL
Physical
- Dimensions: 1,645 x 499 x 975 mm (W x D x H)
- Weight: 136 kg
