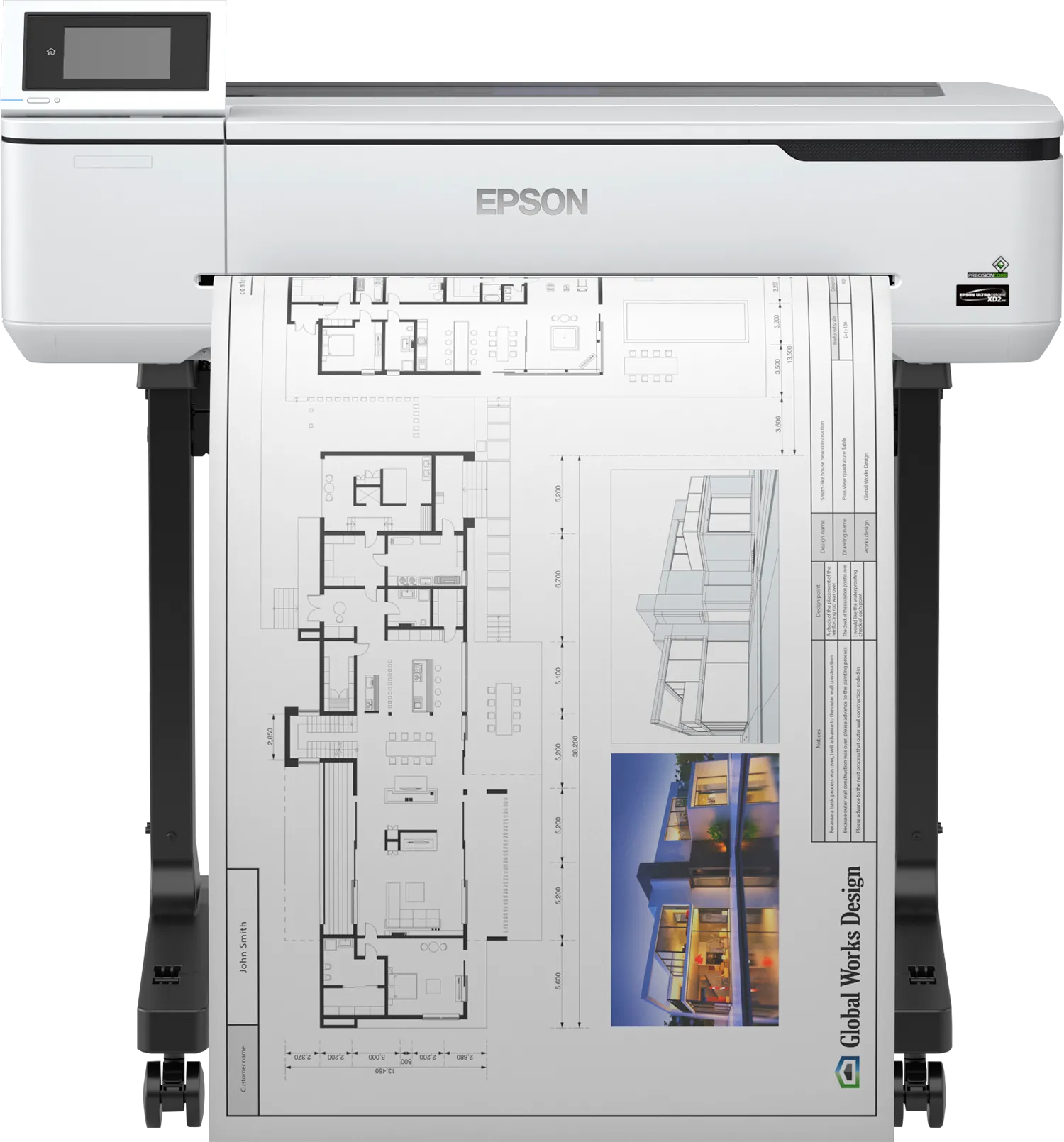

Epson SureColor SC-T3100

SC T3100 Series is a CAD and technical printer for architects, construction teams, engineers that need accurate, dependable large-format output.

Key benefits

  • Compact technical printing designed for dependable day-to-day CAD output
  • Supports fast turnaround on drawings, plans and presentation graphics
  • Well suited to teams that need accuracy without over-specifying the system
  • Prints A4 up to A1, plus 17- and 24-inch rolls
  • Up to 2,400 x 1,200 dpi with variable-sized droplets for fine detail
  • Compact body, 970 mm wide, for smaller offices

Features

  • Release Date: Dec/2018

Print Performance

  • Print Technology: PrecisionCore print head; UltraChrome XD pigment ink
  • Print Speed: A1 in 34 s (CAD draft, plain paper)
  • Print Resolution: 2,400 x 1,200 DPI (min. line width 0.02 mm; line accuracy +/- 0.1%)
  • Line Accuracy: ±0.1%
  • Minimum Line Width: 0.02 mm

Ink & Colour

  • Ink / Toner Type: UltraChrome XD pigment ink
  • Ink Colours: 4-colour: Black, Cyan, Yellow, Magenta. Cartridges: Black 50ml/80ml; Cyan/Yellow/Magenta 26ml/50ml
  • Printhead: 800 nozzles per colour (Variable-Sized Droplet Technology, 4pl)

Media Handling

  • Maximum Media Width: 24 in roll (also 17 in); sheets up to A1/A2+/A3+/B1/B5
  • Maximum Roll Diameter: 119 mm
  • Media Handling: Auto sheet feeder, auto cutter, roll paper; roll capacity diameter 119 mm, weight 4,200 g
  • Media Thickness: Sheet up to 0.3 mm; roll up to 0.2 mm
  • Compatible Paper Thickness: 0.05 mm – 0.27 mm
  • Applications: Technical & CAD drawings; architectural & engineering plans

Scanning

  • Scanner: Not included with delivery; optional external scanner supported (Epson WorkForce DS-6500 or DS-60000)
  • Functions: Print only (scan via optional external scanner)

Workflow

  • Memory: 1 GB (printer)
  • Connectivity: USB 3.0, Ethernet 1000, Wireless LAN 802.11b/g/n, Wi-Fi Direct; Apple AirPrint
  • Print Languages: ESC/P-R, HP-GL/2, RTL
  • Colour Mode: 4-colour (CMYK pigment)

Physical

  • Dimensions: 970 x 696 x 913 mm (W x D x H, with stand)
  • Weight: 38 kg (with stand)
