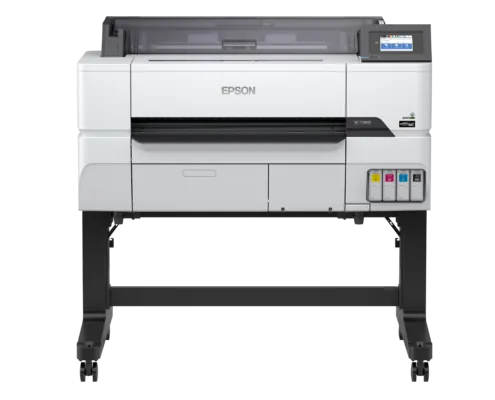

Epson SureColor SC-T3405

SC T3405 Series is a CAD and technical printer for architects, construction teams, engineers that need accurate, dependable large-format output.
Key benefits
- Compact technical printing designed for dependable day-to-day CAD output
- Supports fast turnaround on drawings, plans and presentation graphics
- Well suited to teams that need accuracy without over-specifying the system
- Sharp lines and text at up to 2,400 x 1,200 dpi
- Variable-sized droplets down to 4 pl for fine detail
- Four pigment inks: black, cyan, magenta and yellow
Features
- Release Date: Apr/2020
Print Performance
- Print Technology: PrecisionCore print head; UltraChrome XD2 pigment ink
- Print Speed: First page out: Monochrome 25 sec, Colour 25 sec; A1 posters in as little as 24 seconds via POP Draft Mode
- Print Resolution: 2,400 x 1,200 DPI (min. line width 0.02 mm; line accuracy +/- 0.1%)
- Line Accuracy: ±0.1%
- Minimum Line Width: 0.02 mm
Ink & Colour
- Ink / Toner Type: UltraChrome XD2 pigment ink; 110ml, 350ml or 700ml cartridges
- Ink Colours: 4-colour: Black, Cyan, Yellow, Magenta, each available in 110ml/350ml/700ml
- Printhead: 800 nozzles Black, 800 nozzles per colour (Variable-Sized Droplet Technology, 4pl)
Media Handling
- Maximum Media Width: 24 in roll; sheets up to A1/A2+/A3+/B1/B5
- Media Handling: Auto cutter, borderless print, roll paper
- Maximum Roll Diameter: 170 mm
- Media Thickness: 0.05–0.3 mm
- Compatible Paper Thickness: 0.05 mm – 0.3 mm
- Applications: CAD designs; architectural & engineering technical drawings; general office documents; event posters; point-of-purchase retail signage
Scanning
- Scanner: Not included with delivery; optional external scanner supported (Epson WorkForce DS-6500 or DS-60000)
- Functions: Print only (scan via optional external scanner); document enlargement workflow via connected Epson MFP
Workflow
- Memory: 1 GB (printer)
- Connectivity: USB 3.0, Ethernet 1000, Wireless LAN 802.11b/g/n, Wi-Fi Direct; Apple AirPrint
- Colour Mode: 4-colour (CMYK pigment)
- Print Languages: ESC/P-R, HP-GL/2, RTL
Physical
- Dimensions: 1,080 x 750 x 1,060 mm (W x D x H, with stand)
- Weight: 64 kg
Frequently asked questions
Can I see it running before I buy?
Talk to us and we'll organise a demonstration on the machine you're considering, at our Demonstration Centre in Woking.
About the Demonstration Centre →
Who installs and looks after it?
We supply, install and support every machine we sell. A Service Plan keeps it running: manufacturer-trained engineers, genuine manufacturer parts and one number to call.
Can I spread the cost?
Most customers spread the cost over 36 or 60 months. We work with a finance provider, or a broker of your choice — speak to us and we will help you find the right option for your business.
Do you pass on manufacturer offers?
Yes. Every cashback and promotional offer on printers is passed from our partners to you.
Where do you work?
We supply and support businesses across London and South England.
