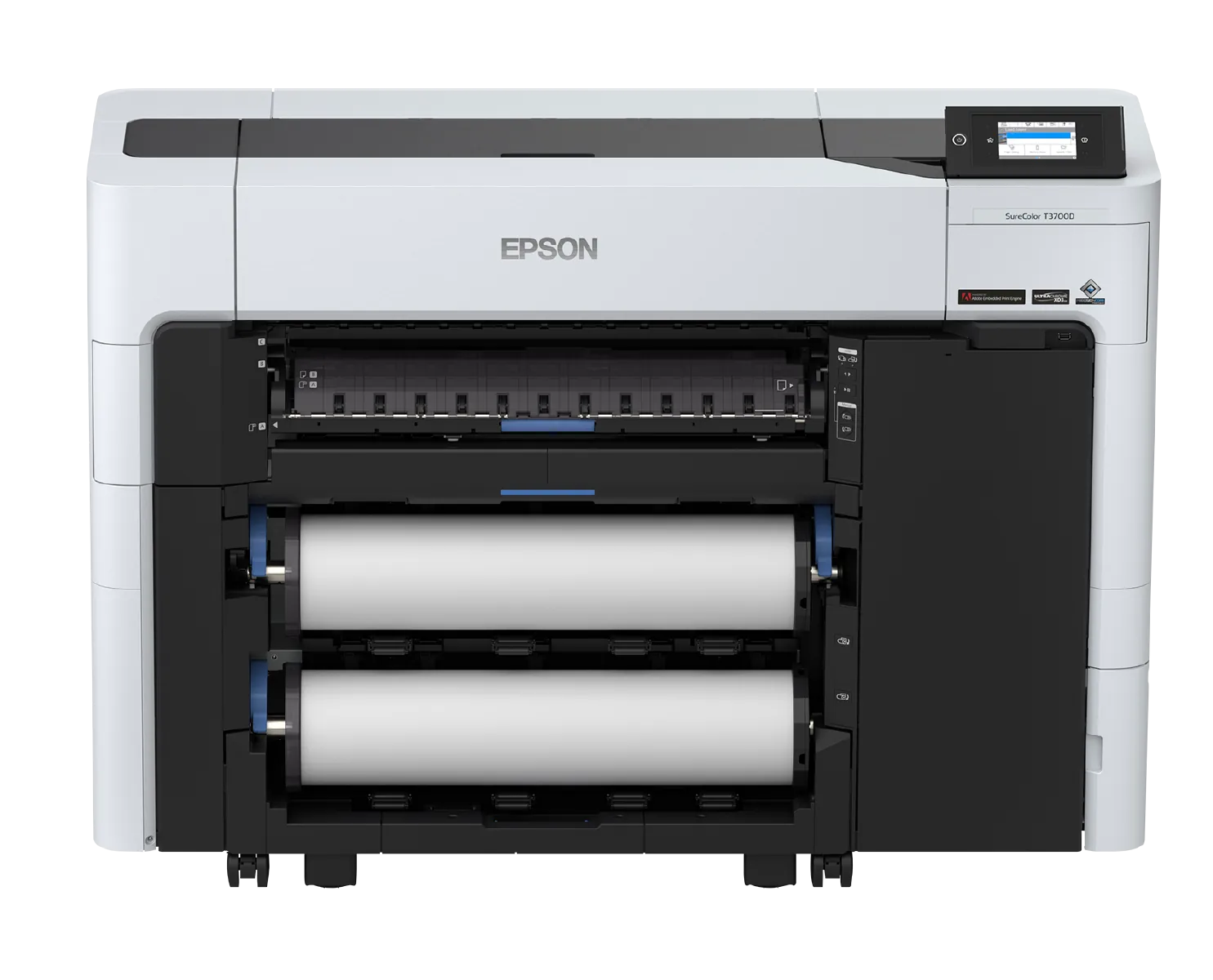

Epson SureColor SC-T3700E

SC T3700 Series is a CAD and technical printer for architects, construction teams, engineers that need accurate, dependable large-format output.
Key benefits
- Compact technical printing designed for dependable day-to-day CAD output
- Supports fast turnaround on drawings, plans and presentation graphics
- Well suited to teams that need accuracy without over-specifying the system
- Line drawings at up to 130 m² an hour, or an A1 sheet in 16 seconds
- Nozzle Verification Technology helps protect print quality
- Print lengths up to 91 m for long plans and banners
Features
- Release Date: Jan/2023
Print Performance
- Print Technology: UltraChrome XD3 6-colour pigment ink (Pk, Mk, C, Y, M, Red)
- Print Speed: Up to 130 m²/hr
- Print Resolution: Max quality 2,400 x 1,200 DPI; draft 300 x 600 DPI (min. line width 0.26 mm; line accuracy +/- 0.1%)
- Line Accuracy: ±0.1% (or ±0.26 mm, whichever is greater)
- Minimum Line Width: 0.02 mm addressable (0.08 mm printed)
Ink & Colour
- Ink / Toner Type: UltraChrome XD3 pigment ink; 350ml or 700ml cartridges
- Ink Colours: 6-colour: Photo Black, Matte Black, Cyan, Yellow, Magenta, Red (each 350ml/700ml)
- Printhead: 2.64-inch Micro TFP printhead, 3.5pl droplets (Variable-Sized Droplet Technology)
Media Handling
- Maximum Media Width: 24 in single roll (also 17 in); custom width and length; sheets up to A1/A2+/A3+/A4
- Media Handling: Auto cutter, auto take-up reel, borderless print; roll capacity: 170 mm diameter, 6,800 g weight
- Maximum Roll Diameter: 170 mm
- Media Thickness: Roll and cut sheet 0.07–0.8 mm; board 1.5 mm
- Applications: Retail & hospitality signage; point-of-purchase posters; temporary outdoor advertising
Scanning
- Scanner: Not applicable — print-only model
- Functions: Print only; 28 security features; emulations ESC/P, PDF 1.7, HP-GL2, RTL
Workflow
- Memory: 4 GB (optional 1TB SSD storage)
- Connectivity: PC, Mac, Mobile Device, USB; Epson Cloud Solution PORT; optional 960GB SSD
- Colour Mode: 6-colour pigment (CMYK + Red + extra Black)
- Print Languages: ESC/P, PDF 1.7, HP-GL/2, RTL
Physical
- Dimensions: 1,365 x 499 x 975 mm (W x D x H)
- Weight: 118 kg
Frequently asked questions
Can I see it running before I buy?
Talk to us and we'll organise a demonstration on the machine you're considering, at our Demonstration Centre in Woking.
About the Demonstration Centre →
Who installs and looks after it?
We supply, install and support every machine we sell. A Service Plan keeps it running: manufacturer-trained engineers, genuine manufacturer parts and one number to call.
Can I spread the cost?
Most customers spread the cost over 36 or 60 months. We work with a finance provider, or a broker of your choice — speak to us and we will help you find the right option for your business.
Do you pass on manufacturer offers?
Yes. Every cashback and promotional offer on printers is passed from our partners to you.
Where do you work?
We supply and support businesses across London and South England.
