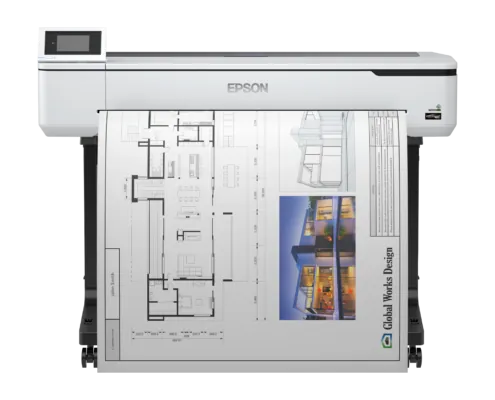

Epson SureColor SC-T5100

SC T5100 Series is a CAD and technical printer for architects, construction teams, engineers that need accurate, dependable large-format output.
Key benefits
- Compact technical printing designed for dependable day-to-day CAD output
- Supports fast turnaround on drawings, plans and presentation graphics
- Well suited to teams that need accuracy without over-specifying the system
- Takes cut sheets from A4 to A1, including A2+ and A3+
- Narrow 3 mm margins on sheet media
- Up to 2,400 x 1,200 dpi with variable-sized droplets
Features
- Release Date: Aug/2018
Print Performance
- Print Technology: UltraChrome XD2 pigment ink
- Print Speed: First page out: Monochrome 31 sec, Colour 31 sec
- Print Resolution: 2,400 x 1,200 DPI (min. line width 0.02 mm; line accuracy +/- 0.1%)
- Line Accuracy: ±0.1%
- Minimum Line Width: 0.02 mm
Ink & Colour
- Ink / Toner Type: UltraChrome XD2 pigment ink
- Ink Colours: 4-colour: Black, Cyan, Yellow, Magenta; ink tank capacity 26ml, 50ml or 80ml
- Printhead: 800 nozzles Black, 800 nozzles per colour
Media Handling
- Maximum Media Width: 36 in (A0) roll; also 24 in, 17 in; sheets up to A0/A1/A2+/A3+/B1/B5
- Media Handling: Auto sheet feeder, auto cutter, roll paper
- Maximum Roll Diameter: 119 mm
- Media Thickness: 0.05–0.27 mm
- Compatible Paper Thickness: 0.05 mm – 0.27 mm
- Applications: Technical & CAD drawings; architectural & engineering plans
Scanning
- Scanner: Not included with delivery
- Functions: Print only
Workflow
- Memory: 1 GB (printer)
- Connectivity: Apple AirPrint; direct scan-to-print without PC
- Colour Mode: 4-colour (CMYK pigment)
Physical
- Dimensions: 1,268 x 696 x 913 mm (W x D x H, with stand)
- Weight: 46 kg
Frequently asked questions
Can I see it running before I buy?
Talk to us and we'll organise a demonstration on the machine you're considering, at our Demonstration Centre in Woking.
About the Demonstration Centre →
Who installs and looks after it?
We supply, install and support every machine we sell. A Service Plan keeps it running: manufacturer-trained engineers, genuine manufacturer parts and one number to call.
Can I spread the cost?
Most customers spread the cost over 36 or 60 months. We work with a finance provider, or a broker of your choice — speak to us and we will help you find the right option for your business.
Do you pass on manufacturer offers?
Yes. Every cashback and promotional offer on printers is passed from our partners to you.
Where do you work?
We supply and support businesses across London and South England.
