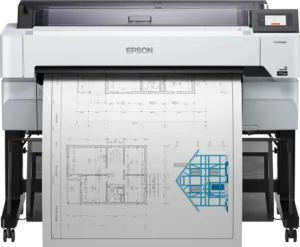

Epson SureColor SC-T5400M MFP

Epson SC-T5400M-MFP is a 36-inch technical MFP built for professionals needing reliable print, copy and scan in one machine.

Key benefits

  • Print, copy and scan in a single 36-inch technical MFP
  • Two input trays for flexible media handling
  • Wi-Fi connectivity and a 10.9cm colour touchscreen
  • Prints up to A0, or from rolls up to 36 inches (914 mm)
  • 22 A1 prints an hour at normal quality
  • UltraChrome XD2 pigment inks in 110, 350 or 700 ml

Features

  • Release Date: Sep/2019
  • Print Quality: Up to 2400 x 1200 dpi
  • Media Size: Max A0 (841 x 1189mm); roll up to 36-in (914mm); two input trays
  • Ink Supply: UltraChrome XD2 pigment inks (4 colours); 110ml/350ml/700ml cartridges

Print Performance

  • Print Technology: Pigment ink; functions: Print, Scan, Copy
  • Print Speed: First page out: Monochrome 22 sec, Colour 22 sec
  • Print Resolution: 2,400 x 1,200 DPI

Ink & Colour

  • Ink / Toner Type: Pigment ink
  • Ink Colours: 4-colour: Black, Cyan, Yellow, Magenta; Black cartridge 110ml/350ml, ink tank capacity 350ml
  • Printhead: 800 nozzles Black, 800 nozzles per colour (Variable-Sized Droplet Technology, 4pl)

Media Handling

  • Maximum Media Width: 36 in (A0) roll; also 24 in, 17 in; sheets up to A0/A1/A2+/A3+/B1/B5
  • Media Handling: Borderless printing on 17"/24"/36" rolls and multiple fixed widths (10"–33.11")
  • Compatible Paper Thickness: 0.05 mm – 0.3 mm (print); copy thickness 0.8 mm
  • Applications: CAD, GIS, architectural & engineering technical drawings; maps & blueprints (with scan-to-digital)

Scanning

  • Scanner: Integrated top-loading CIS scanner, Dual LED (RGB) light source
  • Scan Resolution: 600 x 600 DPI; scan/media width 36 in (153mm–914.4mm)
  • Scan Speed: 4.5 in/sec colour, 7.5 in/sec monochrome (single-sided, 200dpi)
  • Functions: Print, Scan, Copy (MFP); copy reduction/enlargement 25%–400%, max 99 copies

Workflow

  • Connectivity: USB 3.0, Ethernet 1000, Wireless LAN 802.11b/g/n, Wi-Fi Direct; Apple AirPrint; scan output JPEG, TIFF, PDF
  • Colour Mode: 4-colour (CMYK pigment)

Physical

  • Dimensions: 1,385 x 750 x 1,060 mm (W x D x H)
  • Weight: 88 kg
