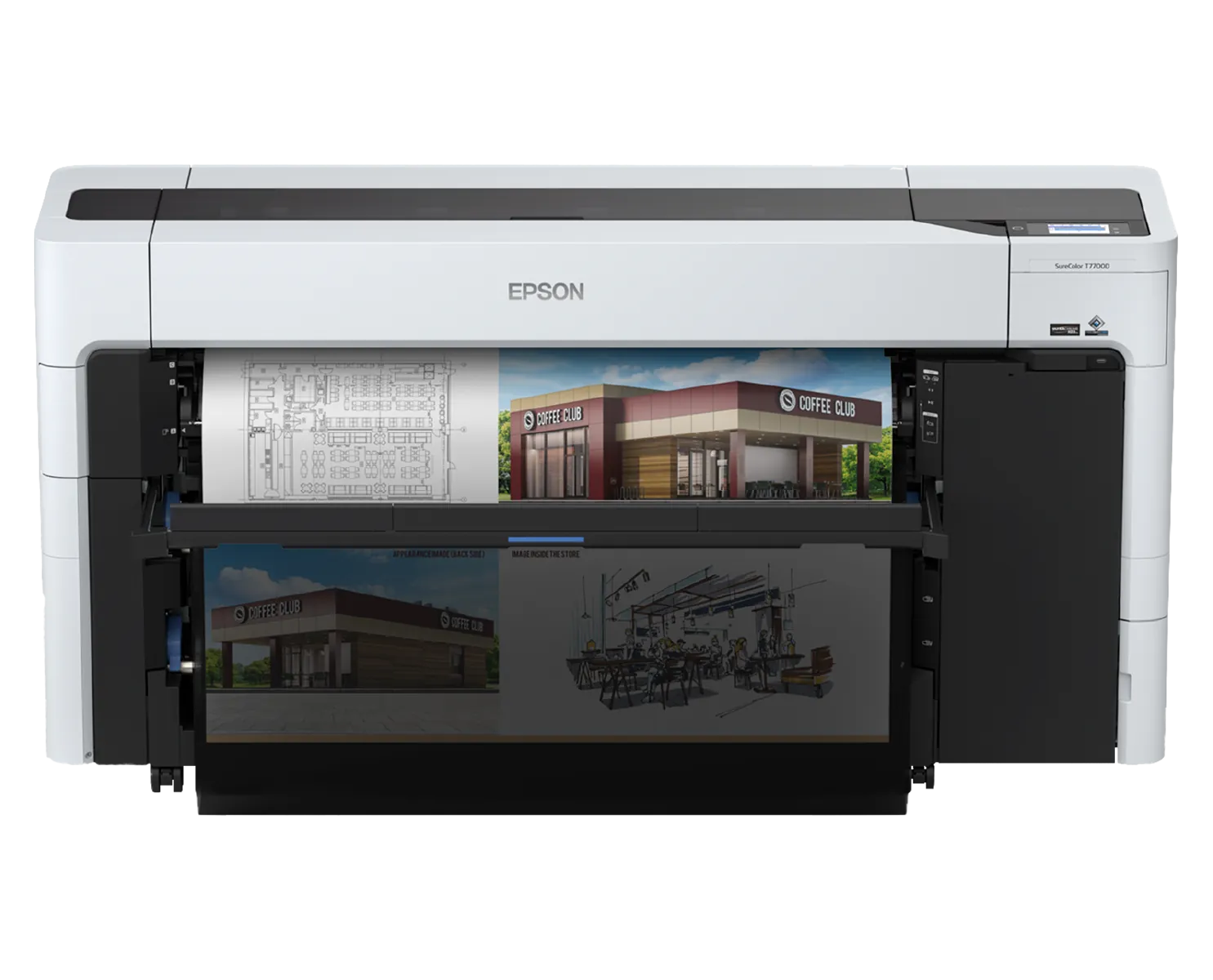

Epson SureColor SC-T7700D

SC T7700 Series is a CAD and technical printer for architects, construction teams, engineers that need accurate, dependable large-format output.
Key benefits
- Compact technical printing designed for dependable day-to-day CAD output
- Supports fast turnaround on drawings, plans and presentation graphics
- Well suited to teams that need accuracy without over-specifying the system
- Holds two rolls up to 170 mm in diameter for fewer media swaps
- Line drawings at up to 130 m² an hour, or an A1 sheet in 16 seconds
- Handles 10- to 44-inch rolls and cut sheets from A4 to B0+
Features
- Release Date: Jun/2021
Print Performance
- Print Technology: PrecisionCore Micro TFP printhead, UltraChrome XD3 pigment ink, Variable-Sized Droplet Technology, Nozzle Verification Technology
- Print Speed: Up to 130 m²/hr; Quick mode 3 ppm (CAD A1 page size)
- Print Resolution: Draft: 600 x 600 dpi; Maximum quality: 2,400 x 1,200 dpi; Speed: 300 x 600 dpi
- Line Accuracy: ±0.1% (or ±0.26 mm, whichever is greater)
- Minimum Line Width: 0.02 mm
Ink & Colour
- Ink Type: UltraChrome XD3 all-pigment ink
- Ink Colours: 6-colour: Photo Black, Matte Black, Cyan, Yellow, Magenta, Red — 350ml and 700ml cartridges
- Printhead: PrecisionCore Micro TFP, 1,600 nozzles per colour, 3.5pl minimum droplet, minimum line width 0.02mm, line accuracy +/-0.26%
Media Handling
- Max Media Width: 44" roll (also 17", 24", 36"); sheet sizes up to A0, B0, B1 (72.8x102.8cm)
- Maximum Roll Diameter: 170 mm
- Media Thickness: Single sheet 0.1mm, roll 0.8mm; rigid board supported
- Media Thickness: Roll up to 0.8 mm; sheet 0.1 mm; rigid board supported
- Applications: AEC/CAD/GIS plans & drawings; retail point-of-sale posters; public-sector printing
- Media Handling: Automatic media loading, dual roll, auto take-up reel, auto-switching, borderless printing on roll media (10"–44")
Scanning
- Built-in Scanner: No
- Functions: Print only (technical/CAD printer — no scan/copy on this model)
Workflow
- Memory: 4 GB RAM; optional 1TB SSD
- Connectivity: Hi-Speed USB 2.0, Gigabit Ethernet (1000Base-T), Wireless LAN 802.11a/b/g/n/ac; emulations ESC/P-R, PostScript 3, PDF 1.7, HP-GL2, RTL
- Print Languages: Adobe PostScript 3, PDF 1.7, ESC/P-R, HP-GL/2, RTL
Physical
- Dimensions: 1,848 x 499 x 975 mm (W x D x H)
- Weight: 155 kg
Frequently asked questions
Can I see it running before I buy?
Talk to us and we'll organise a demonstration on the machine you're considering, at our Demonstration Centre in Woking.
About the Demonstration Centre →
Who installs and looks after it?
We supply, install and support every machine we sell. A Service Plan keeps it running: manufacturer-trained engineers, genuine manufacturer parts and one number to call.
Can I spread the cost?
Most customers spread the cost over 36 or 60 months. We work with a finance provider, or a broker of your choice — speak to us and we will help you find the right option for your business.
Do you pass on manufacturer offers?
Yes. Every cashback and promotional offer on printers is passed from our partners to you.
Where do you work?
We supply and support businesses across London and South England.
