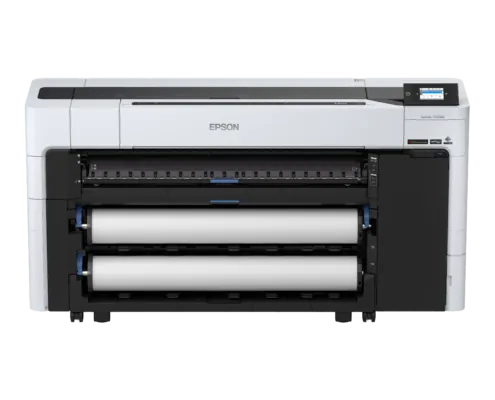

Epson SureColor SC-T7700DM MFP

SC-T7700DM MFP is a 44-inch large format multifunction printer designed for architects, engineers, reprographics and other professional print environments.

Key benefits

  • Designed for reliable professional output
  • Supports efficient production workflows
  • A strong fit for businesses investing in high-value print capability
  • Scans at up to 10 inches a second in mono, 4.5 in colour
  • Two rolls on board, each up to 170 mm in diameter
  • Prints A4 to A0 sheets and 17- to 44-inch rolls

Features

  • Release Date: May/2023

Print Performance

  • Print Technology: PrecisionCore printhead, UltraChrome XD3 pigment ink
  • Print Speed: Quick mode 3 ppm (CAD A1 page size)
  • Print Resolution: Max 1,200 x 2,400 dpi; Speed mode 300 x 600 dpi
  • Line Accuracy: ±0.1%
  • Minimum Line Width: 0.02 mm

Ink & Colour

  • Ink Type: UltraChrome XD3 pigment ink
  • Ink Colours: 6-colour: Photo Black, Matte Black, Cyan, Yellow, Magenta, Red — 350ml and 700ml cartridges
  • Printhead: Minimum droplet 3.5pl (CMY, MK, PK); minimum line width 0.02mm; line accuracy +/-0.1%

Media Handling

  • Max Media Width: 36" roll (also 17", 24", 44"); sheet sizes up to A0, A1, A2, A3, A4
  • Maximum Roll Diameter: 170 mm
  • Media Handling: Automatic media loading, dual roll (Roll 1 + Roll 2, 170 mm diameter each), auto take-up reel
  • Applications: CAD plans & drawings; architectural & engineering renderings, schematics & blueprints

Scanning

  • Scan Speed: 10 in/sec mono, 4.5 in/sec colour at 200dpi; scan width 36" (153mm–914.4mm); max scan length 30.5m
  • Scanner: Integrated dual LED (RGB) CIS scanner, destinations: onboard 960GB self-encrypting SSD, USB, network folder; outputs JPEG/TIFF/multi-TIFF/PDF/PDF-A/PDF multi/Secured PDF
  • Functions: Print, Scan, Copy; copy reduction/enlargement 25%–755%, max 99 copies; Adobe PostScript 3 included

Workflow

  • Memory: 960GB self-encrypting SSD (onboard)

Physical

  • Dimensions: 1,848 x 499 x 975 mm (W x D x H)
  • Weight: 166 kg

Frequently asked questions

Can I see it running before I buy?

Talk to us and we'll organise a demonstration on the machine you're considering, at our Demonstration Centre in Woking.

About the Demonstration Centre →

Who installs and looks after it?

We supply, install and support every machine we sell. A Service Plan keeps it running: manufacturer-trained engineers, genuine manufacturer parts and one number to call.

See our Service Plans →

Can I spread the cost?

Most customers spread the cost over 36 or 60 months. We work with a finance provider, or a broker of your choice — speak to us and we will help you find the right option for your business.

Do you pass on manufacturer offers?

Yes. Every cashback and promotional offer on printers is passed from our partners to you.

See current offers →

Where do you work?

We supply and support businesses across London and South England.
