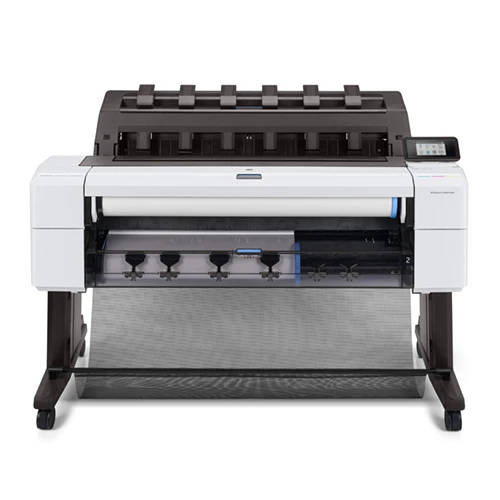

HP DesignJet T1600dr 36-in Printer Plus Edition

HP Designjet T1600 36″ Printer Series is a CAD and technical printer for architects, construction teams, engineers that need accurate, dependable large-format output.
Key benefits
- Compact technical printing designed for dependable day-to-day CAD output
- Supports fast turnaround on drawings, plans and presentation graphics
- Well suited to teams that need accuracy without over-specifying the system
- Up to 180 A1 prints an hour, 19.3 seconds a sheet
- Built-in stacker collects up to 100 A1 prints
- Quiet at 42 dB(A) while printing, so it suits a shared office
Features
- Release Date: May/2019
- Warranty: One-year limited hardware warranty
Print Performance
- Print Technology: HP Thermal Inkjet
- Print Speed: 180 D/hr, 19.3 sec/D
- Print Resolution: Up to 2400 x 1200 optimized dpi
- Line Accuracy: ±0.1%
- Ink Drop Size: 6 pl (C, M, Y, Gray, Photo Black); 9 pl (Matte Black)
Ink & Colour
- Ink Type: Dye-based (C, M, Y, Photo Black, Gray); pigment-based (Matte Black)
- Ink Colours: 6 colours: Cyan, Magenta, Yellow, Photo Black, Matte Black, Gray
- Printheads: 1 universal printhead
Media Handling
- Maximum Media Width: 914 mm (36 in)
- Media Handling: Sheet feed, automatic front-loading roll feed, smart roll switching, integrated output stacker, media bin, automatic horizontal cutter
- Maximum Roll Diameter: 140 mm (5.5 in)
- Media Thickness: Up to 0.48 mm (0.019 in)
- Compatible Media: Bond and coated paper, technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper, backlit, self-adhesive vinyl/polypropylene
- Applications: Line drawings; Maps; Orthophotos; Presentations; Renderings
Workflow
- Colour / Mono: Colour
- Memory / Storage: 128 GB (file processing); 500 GB self-encrypting storage
- Connectivity: Gigabit Ethernet (1000Base-T); Wi-Fi (optional Jetdirect accessory)
- Print Languages: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4
Physical
- Dimensions (W x D x H): 1397 x 762 x 1092 mm
