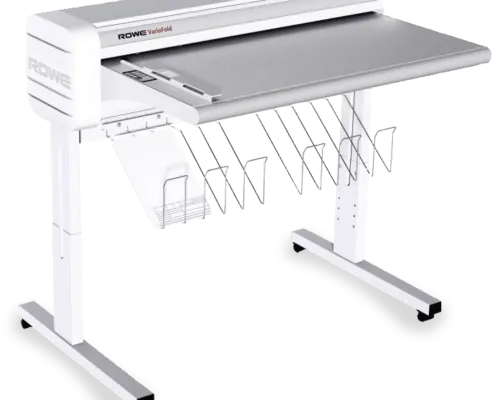

Rowe VarioFold Compact

Rowe VarioFold Compact is a folding system designed for architects and other professional print environments.

Key benefits

  • Designed for reliable professional output
  • Supports efficient production workflows
  • A strong fit for businesses investing in high-value print capability
  • Folds at up to 20 m a minute, or matched to your printer's output
  • Front delivery tray keeps the footprint small
  • Works with all standard wide format printers

Features

  • Media Types / Weights: Normal and inkjet paper, 60–120 g/m² (paper weight: 16–32 lb)
  • Power Consumption: Energy saving mode: < 0.8 Watt; operating mode: 58 Watt
  • Certificates: RoHS, CE, UL, cUL, CB, FCC Part 15 Class B, EAC

Media Handling

  • Media Width: 210 mm – 960 mm (8.27″ – 37.8″)

Workflow

  • Fan Folding: Up to 2500 mm (98.43″) standard; up to 4000 mm (157.48″) with the ROWE FOLD APP SE; up to 30 m (98.43 ft) or unlimited with the Endless Folding Kit 30/UNLIMITED (patented)
  • Cross Folding: Up to 1500 mm (59.06″) for DIN folding standard; up to 2500 mm (98.43″) for DIN folding with the ROWE FOLD APP SE
  • Folding Standards: DIN 824 A, B, C (A4, A3, A2, A1, A0); AFNOR similar (A4, A3, A2, A1, A0); ANSI (A, B, C, D, E); ARCH (A, B, C, D, E); Ericsson (A4, A3, A2, A1, A0); French
  • Folding Speed: 20 m/min (65.62 ft/min) in offline operation; up to 20 m/min (65.62 ft/min) in online operation with multispeed and short gap technology
  • Filing Margin: 0 mm (0″), 20 mm (0.79″), 25 mm (0.98″) and 30 mm (1.18″)
  • Noise Level: Not measurable in energy saving mode; 50 dB(A) in operating mode (in accordance with ISO 7779)
  • Power Connection: 100–240 V, 50/60 Hz
  • Interfaces: RS 232 serial / CAN / USB

Physical

  • Dimensions & Weight: Dependent on your individual configuration — see the ROWE configurator at rowe.one/configurator
