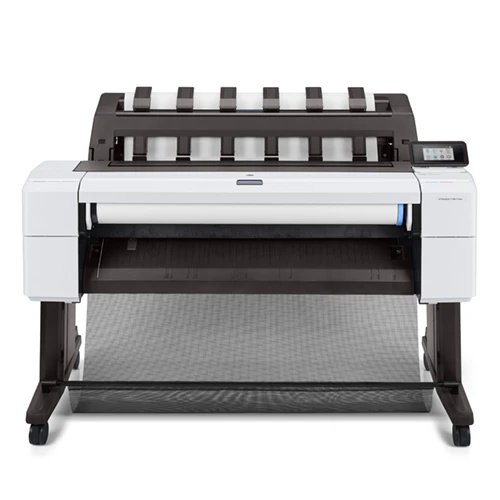

HP DesignJet T1600 PostScript Printer Plus Edition

HP Designjet T1600 PS is a 36-inch CAD printer built for architecture and engineering teams running Adobe PDF and PostScript workflows.
Key benefits
- 180 D/hr with a 19.3 second D-sized sheet
- Native Adobe PDF Print Engine and PostScript workflow support
- ±0.1% line accuracy for CAD, GIS and technical drawings
- Built-in stacker collects up to 100 A1 prints
- Quiet at 42 dB(A) while printing, so it suits a shared office
- Print from a USB stick, email, AirPrint or the HP app
Features
- Release Date: May/2019
- Drivers (PostScript model): HP Click Driver for Windows 11, Raster, PostScript and PDF drivers for Windows, AirPrint for macOS
- Security Features: HP Wolf Pro Security, HP Secure Boot, Allowlisting, TPM, Role Based Access Control, LDAP and Kerberos authentication, SNMPv3, HTTPS, Secure-IPP, IPsec/Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2/1.3, HP Web Jetadmin compatible, HP JetAdvantage Security Manager compatible, Secure Disk erase, self-encrypting storage, encrypted PIN printing, Syslog security logging
- Warranty: One-year limited hardware warranty
Print Performance
- Print Technology: HP Thermal Inkjet
- Print Speed: 180 D/hr, 19.3 sec/D
- Print Resolution: Up to 2400 x 1200 optimized dpi
- Line Accuracy: ±0.1%
- Ink Drop Size: 6 pl (C, M, Y, Gray, Photo Black); 9 pl (Matte Black)
- Minimum Line Width: 0.02 mm (PDF addressable at 1200 dpi)
Ink & Colour
- Ink Type: Dye-based (C, M, Y, Photo Black, Gray); pigment-based (Matte Black) — 6 cartridges total
- Ink Colours: 6: cyan, magenta, yellow, grey, photo black, matte black
- Printheads: 1 universal printhead; cartridge volumes 300 ml and 130 ml
Media Handling
- Roll / Sheet Size: Max media width 36 in; roll size 11 to 36 in; sheet size 8.3 x 11 to 36 x 48 in; standard sizes Letter, Tabloid, C-size, D-size, E-size; max roll weight 26.3 lb, max roll diameter 5.5 in
- Paper Weight / Thickness: 0.0011 to 0.0062 lb/ft² recommended; max thickness 0.019 in
- Maximum Roll Diameter: 140 mm (5.5 in)
- Media Thickness: Up to 0.5 mm
- Media Handling: Sheet feed, automatic front-loading roll feed, smart roll switching (dual-roll only), integrated output stacker (up to 100 A1/D-size pages), media bin, automatic horizontal cutter
- Supported Media Types: Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, coloured), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl)
- Applications: Line drawings; Maps; Orthophotos; Presentations; Renderings
Scanning
- Built-in Scanner: No
Workflow
- Memory / Storage: 128 GB (file processing); 500 GB self-encrypting hard disk
- Connectivity: Gigabit Ethernet (1000Base-T); Wi-Fi with optional HP Jetdirect 3100w accessory; TCP/IP, BootP/DHCP, DHCPv6, TFTP, SNMP v1/v2c/v3, Apple Bonjour, WS Discovery, Embedded Web Server, HTTP/HTTPS, IPsec, SMTP, Raw IP (9100), LPD, IPP, WS print, NTLM v2, SMBv3, SSL/TLS, 802.1X (LEAP, PEAP, EAP-TLS), DFS
- Native Print Languages (PostScript model): Adobe PostScript 3, Adobe PDF 1.7, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4
Physical
- Dimensions (Product): 55 x 30 x 43 in; shipping 58.1 x 30.2 x 31.5 in
- Weight: Single-roll: 181 lb, dual-roll: 187 lb (product); shipping single-roll 249 lb, dual-roll 258 lb
