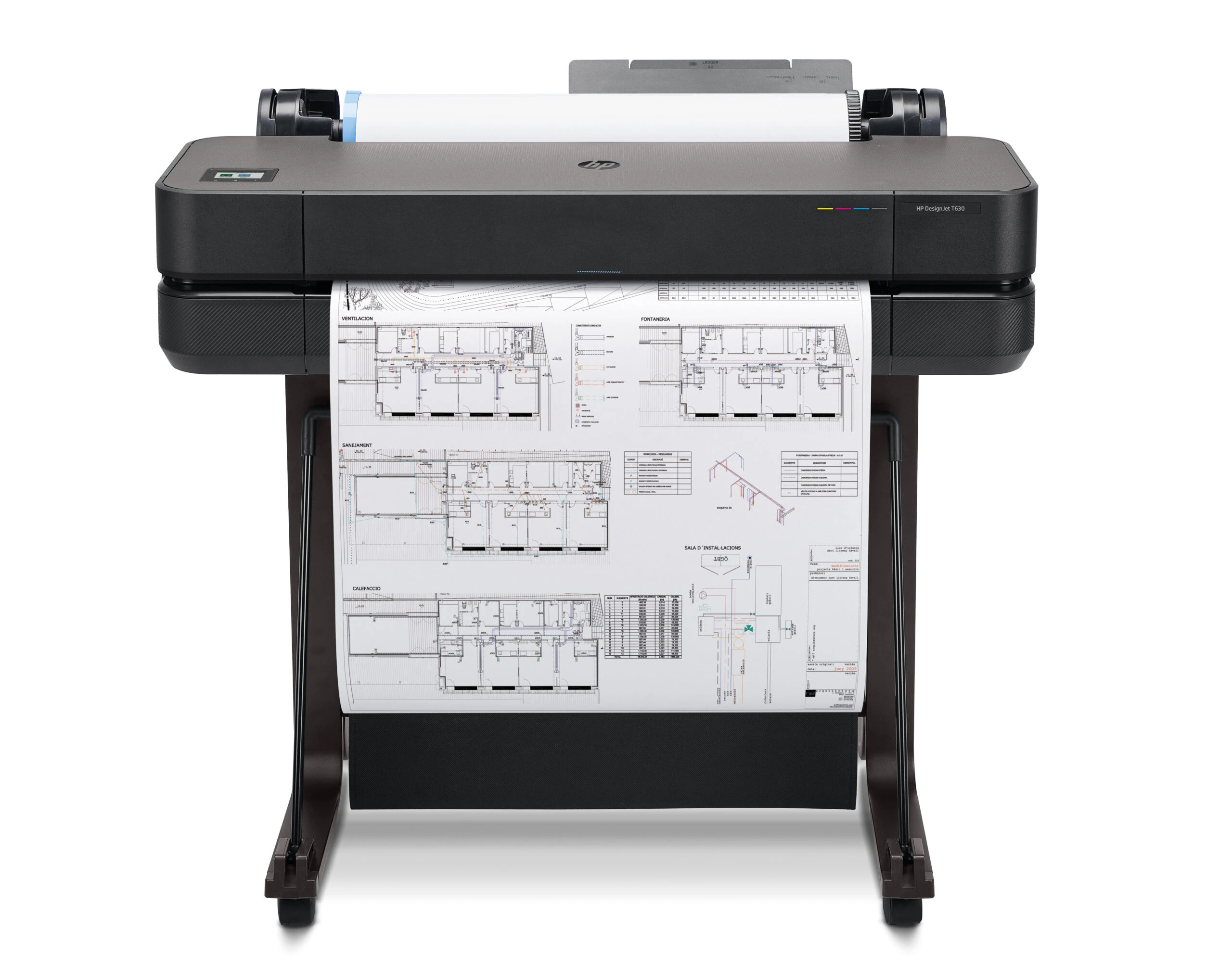

HP DesignJet T630 24-in Printer

HP Designjet T630 24" Plotter is built for architecture and construction professionals needing compact, reliable technical printing.
Key benefits
- 76 A1/hr — as fast as 30 seconds per A1/D plot
- Print multi-size projects automatically without switching media
- Uses up to 95% less ink for routine maintenance vs competitor printers
- Prints up to 24 inches (610 mm) wide
- Sharp line work at up to 2,400 x 1,200 dpi
- Choice of 29, 38 or 80 ml ink cartridges
Features
- Release Date: Sep/2020
- Warranty: One-year limited hardware warranty
Print Performance
- Print Technology: HP Thermal Inkjet
- Print Speed: 30 sec/page on D, 76 D prints per hour
- Print Resolution: Up to 2400 x 1200 optimized dpi
- Line Accuracy: ±0.1%
- Ink Drop Size: 5.5 pl (C, M, Y); 12 pl (K)
- Minimum Line Width: 0.02 mm
Ink & Colour
- Ink Type: Dye-based (C, M, Y); pigment-based (K)
- Ink Colours: 4: cyan, magenta, yellow, black
- Printheads: 1 printhead (cyan, magenta, yellow, black); 1376 nozzles
Media Handling
- Roll / Sheet Size: Roll: 11 to 24 in (279 to 610 mm). Sheet: auto sheet feeder 8.3 x 11 to 13 x 19 in (A, B); 24-in manual feed 8.3 x 11 to 24 x 74.7 in (A, B, C, D)
- Paper Weight / Thickness: 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (auto sheet feeder); up to 11.8 mil thick
- Media Handling: Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter
- Media Thickness: Up to 0.3 mm
- Applications: Line drawings; Presentations; Renderings
Scanning
- Built-in Scanner: No
Workflow
- Memory / Storage: 1 GB; no hard disk
- Connectivity: Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11
- Print Languages: HP-GL/2, HP-RTL, CALS G4, JPEG, URF
Physical
- Dimensions (W x D x H): 39.9 x 23.8 x 36.7 in (1013 x 605 x 932 mm); shipping 45.5 x 22.6 x 18.1 in (1155 x 575 x 475 mm)
- Weight: 63.7 lb / 28.9 kg (printer); shipping 82.5 lb / 37.4 kg
Compare with other models in the range
Frequently asked questions
Can I see it running before I buy?
Talk to us and we'll organise a demonstration on the machine you're considering, at our Demonstration Centre in Woking.
About the Demonstration Centre →
Who installs and looks after it?
We supply, install and support every machine we sell. A Service Plan keeps it running: manufacturer-trained engineers, genuine manufacturer parts and one number to call.
Can I spread the cost?
Most customers spread the cost over 36 or 60 months. We work with a finance provider, or a broker of your choice — speak to us and we will help you find the right option for your business.
Do you pass on manufacturer offers?
Yes. Every cashback and promotional offer on printers is passed from our partners to you.
Where do you work?
We supply and support businesses across London and South England.
