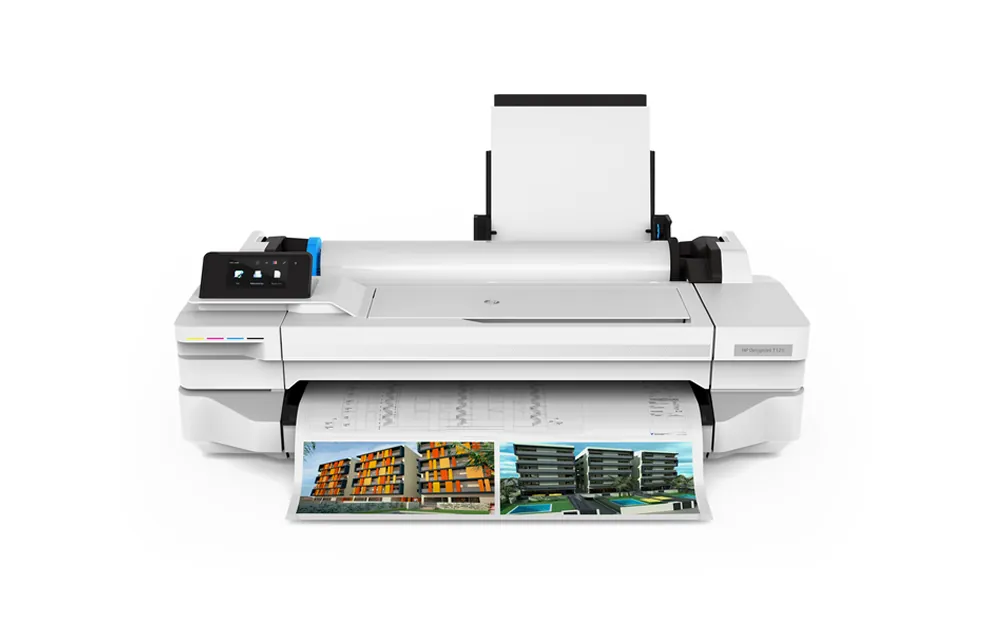

HP DesignJet T130 24-in Printer

HP Designjet T130 24″ Printer is a CAD and technical printer for architects, construction teams, engineers that need accurate, dependable large-format output.

Print Performance

  • Print Technology: HP Thermal Inkjet
  • Print Speed: 35 sec/page on A1 (D), 70 A1 (D) prints per hour
  • Print Resolution: Up to 1200 x 1200 optimised dpi
  • Line Accuracy: ±0.1%

Ink & Colour

  • Ink Type: Dye-based (C, M, Y); pigment-based (K)
  • Ink Drop Size: 5.5 pl (C, M, Y); 12 pl (K)
  • Ink Colours: 4: cyan, magenta, yellow, black
  • Printheads: 1 printhead (cyan, magenta, yellow, black); 1376 nozzles

Media Handling

  • Media Thickness: Up to 0.3 mm

Paper Handling

  • Roll / Sheet Size: Roll: 279 to 610 mm (11 to 24 in). Sheet: input tray 210 x 279 to 330 x 482 mm (A4, A3); manual feed 330 x 482 to 610 x 1897 mm (A2, A1)
  • Paper Weight / Thickness: 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input tray); up to 0.3 mm thick
  • Media Handling: Sheet feed, roll feed, input tray, automatic horizontal cutter

Scanning

  • Built-in Scanner: No

Workflow

  • Memory / Storage: 256 MB; no hard disk
  • Connectivity: Fast Ethernet (100Base-T), Hi-Speed USB 2.0, Wi-Fi

Physical

  • Dimensions (W x D x H): 987 x 530 x 285 mm (38.9 x 20.9 x 11.2 in); shipping 1130 x 610 x 405 mm
  • Weight: 25 kg / 55.1 lb (printer); shipping 28.5 kg / 62.8 lb

Other

  • Applications: Line drawings; Presentations; Renderings
  • Minimum Line Width: 0.04 mm (HP-GL/2 addressable)
  • Print Languages (as printed in datasheet): JPEG
  • Warranty: Two-year limited hardware warranty
