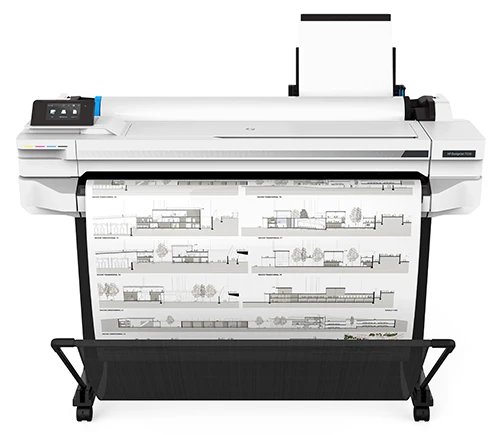

HP DesignJet T500 36-in Printer

HP Designjet T500 36" Plotter is built for technical drawings, plans and presentation graphics needing a larger sheet size.

Print Performance

  • Print Technology: HP Thermal Inkjet
  • Print Speed: T525: 35 sec/page on A1, 70 A1 prints per hour. T530: 27 sec/page on A1, 79 A1 prints per hour
  • Print Resolution: Up to 2400 x 1200 optimised dpi
  • Line Accuracy: ±0.1%

Ink & Colour

  • Ink Type: Dye-based (C, M, Y); pigment-based (K)
  • Ink Drop Size: 5.5 pl (C, M, Y); 12 pl (K)
  • Ink Colours: 4: cyan, magenta, yellow, black
  • Printheads: 1 printhead (cyan, magenta, yellow, black); 1376 nozzles

Media Handling

  • Media Thickness: Up to 0.3 mm

Paper Handling

  • Roll / Sheet Size: Roll: 279 to 914 mm (11 to 36 in). Sheet: input tray 210 x 279 to 330 x 482 mm (A4, A3); manual feed 330 x 482 to 914 x 1897 mm (A2, A1, A0)
  • Paper Weight / Thickness: 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input tray); up to 0.3 mm thick
  • Media Handling: Sheet feed, roll feed, input tray, automatic horizontal cutter

Scanning

  • Built-in Scanner: No

Workflow

  • Memory / Storage: 1 GB; no hard disk
  • Connectivity: Fast Ethernet (100Base-T), Hi-Speed USB 2.0, Wi-Fi

Physical

  • Dimensions (W x D x H): 1292 x 530 x 932 mm (printer); shipping 1395 x 570 x 480 mm
  • Weight: 30.5 kg / 67.2 lb (printer); shipping 58 kg / 127.9 lb

Other

  • Release Date: Jun/2019
  • Applications: Line drawings; Presentations; Renderings
  • Minimum Line Width: 0.02 mm (HP-GL/2 addressable)
  • Print Languages: HP-GL/2, HP-RTL, JPEG, CALS G4
  • Warranty: T525: one-year limited hardware warranty; T530: two-year limited hardware warranty
