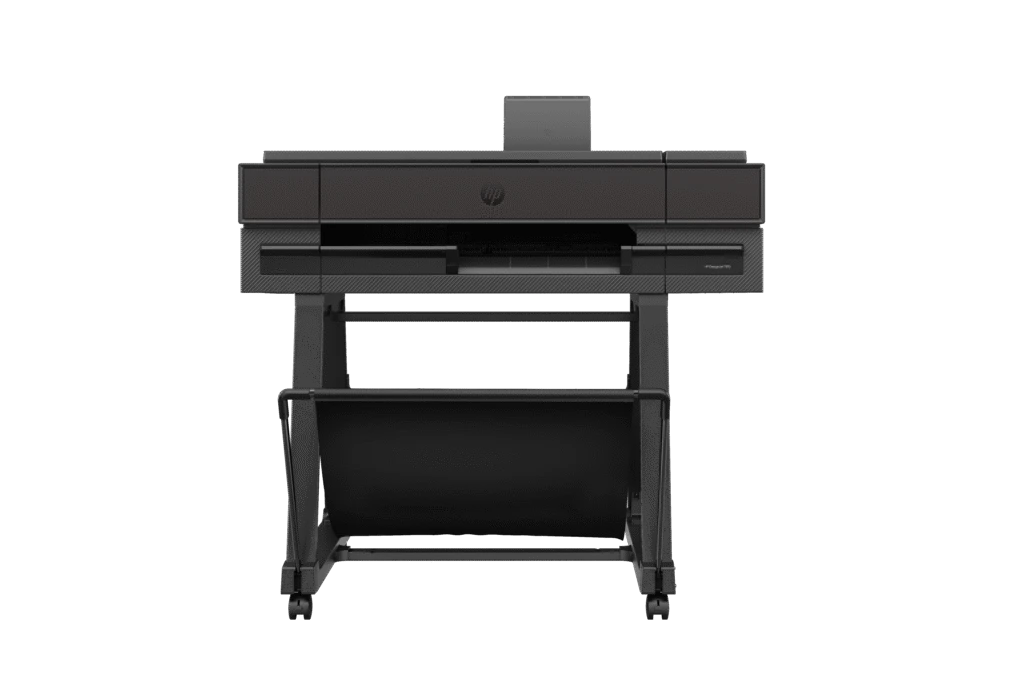

HP DesignJet T870 24-in Printer

The HP DesignJet T870 is a CAD and technical printer for small offices and design teams that want a compact A1 printer with the speed to keep drawings moving.
Key benefits
- Prints an A1 drawing in as little as 21 seconds — up to 120 A1 prints an hour
- Switches between roll and sheet media automatically, from A4 up to A1
- 50-sheet automatic sheet feeder plus roll feed for mixed-size jobs
- 24-in width, built for desks and smaller offices
- Four-colour pigment ink set (HP 738 DesignJet cartridges)
- Automatic horizontal cutter and built-in colour touchscreen
Features
- Release Date: Oct/2025
- Warranty: Two-year limited hardware warranty
Print Performance
- Print Technology: HP Thermal Inkjet
- Print Speed: 21 sec/page on A1, 120 A1 prints per hour
- Print Resolution: Up to 2400 x 1200 optimised dpi
- Line Accuracy: ±0.1%
- Ink Drop Size: 6 pl (C, M, Y); 12.6 pl (mK)
- Minimum Line Width: 0.02 mm
Ink & Colour
- Ink Type: Pigment-based (C, M, Y, matte K)
- Ink Colours: 4: cyan, magenta, yellow, matte black
- Printheads: 1 printhead (cyan, magenta, yellow, matte black); 1,376 nozzles per colour, 5,504 total
Media Handling
- Roll / Sheet Size: Roll: 369 to 610 mm. Sheet: auto sheet feeder 210 x 279 to 305 x 457 mm (A4, A3); manual feed 210 x 279 to 609 x 1676 mm (A4, A3, A2, A1)
- Paper Weight / Thickness: 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (auto sheet feeder); up to 0.3 mm thick
- Media Thickness: Up to 0.3 mm
- Media Handling: Roll feed, automatic sheet feeder (50-sheet capacity), manual feed, media bin, automatic horizontal cutter
- Applications: Banners; Line drawings; Maps; Posters; Presentations; Renderings; Signage
Workflow
- Memory / Storage: 1 GB; no hard disk
- Connectivity: Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n, Wi-Fi Direct, USB pen-drive printing, Apple AirPrint, Chrome OS printing
- Print Languages: TIFF, JPEG, URF, PDF, HP-GL/2, HP-RTL, CALS G4
Physical
- Dimensions (W x D x H): 1100 x 690 x 935 mm (printer); packaged 1310 x 570 x 640 mm
- Weight: 38.5 kg (printer); packaged 48.5 kg
