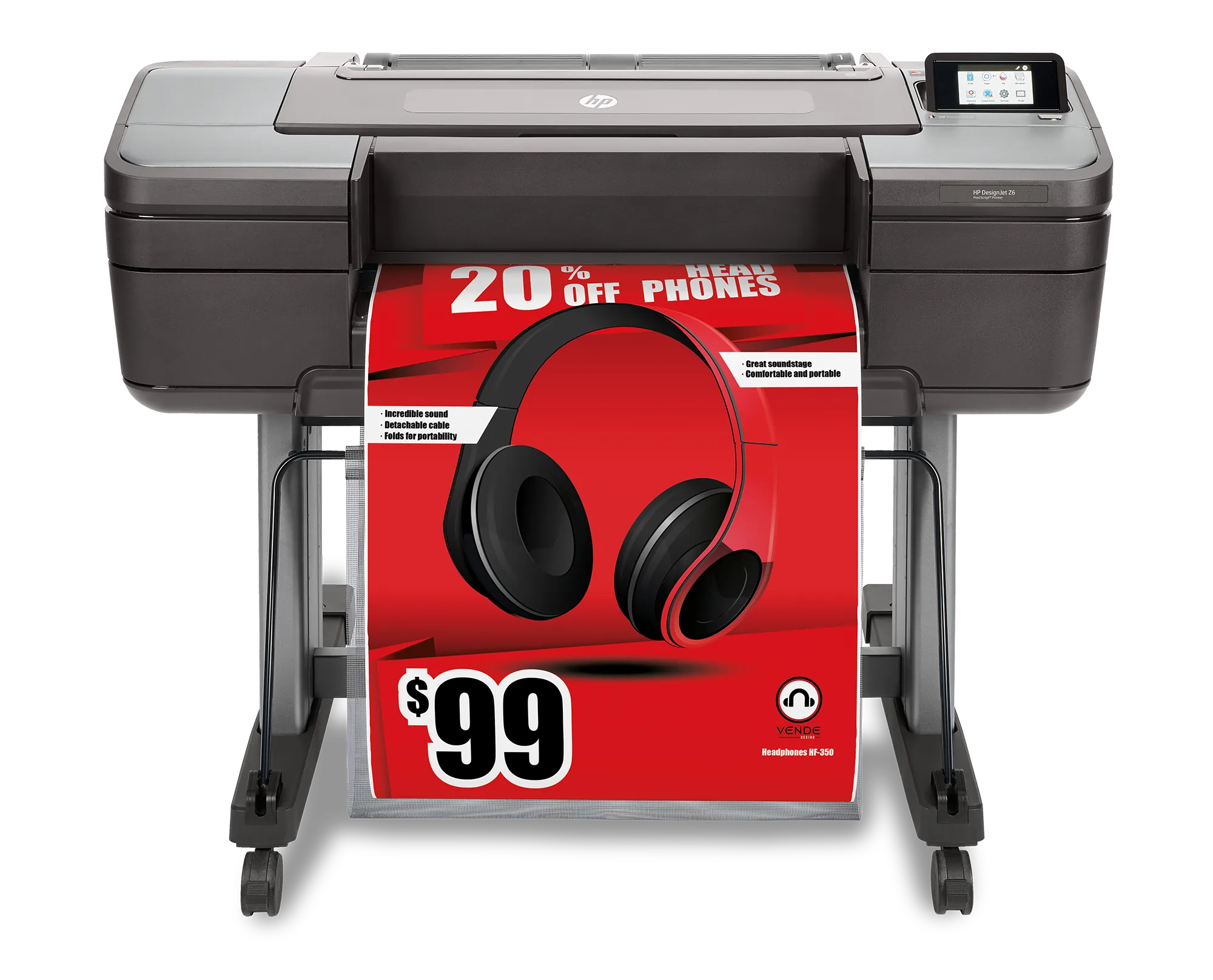

HP DesignJet Z6 24-in

Designjet Z6 24″ is a CAD and technical printer for architects, construction teams, engineers that need accurate, dependable large-format output.
Print Performance
- Print Technology: HP Thermal Inkjet
- Print Speed: 24-in: Fast 66.9 m²/hr (plain media), Normal 15.2 m²/hr (coated media), Best 7.9 m²/hr (glossy media)
- Print Resolution: Up to 2400 x 1200 optimised dpi
- Line Accuracy: ±0.1%
Ink & Colour
- Ink Type: Pigment-based
- Ink Drop Weight: 7/3 pl dual-drop weight (M, C, PK); 6 pl single-drop weight (Y, CR, MK)
- Printheads: 3 universal printheads (valid for all colours); 2112 nozzles per colour, 12,672 total
Media Handling
- Media Thickness: Up to 0.8 mm
Paper Handling
- Max Roll/Sheet Size: 24-in: Roll 279-610 mm; Sheet 210 x 279 to 610 x 1676 mm; standard sheets A4, A3, A2, A1
- Paper Weight (Grammage): 80 to 500 g/m²
- Media Handling: 24-in is single-roll configuration: roll feed, rear sheet feed, media output bin, automatic horizontal cutter
Scanning
- Built-in Scanner: No
Workflow
- Memory: 128 GB virtual (based on 4 GB RAM); 500 GB self-encrypting hard disk
- Connectivity: Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0 for direct USB printing
Physical
- Dimensions (W x D x H): 24-in: 1293 x 695 x 998 mm (shipping 1440 x 766 x 718 mm)
- Weight: 66-96 kg (shipping 97-132 kg) — datasheet gives this as one range across the whole Z6 series, not split by size
Other
- Release Date: Jun/2018
- Functions: Print only (PostScript printer)
- Minimum Line Width: 0.02 mm (PDF addressable at 1200 dpi)
- Print Languages: Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL
