Applikator Modular

Flatbed Laminator

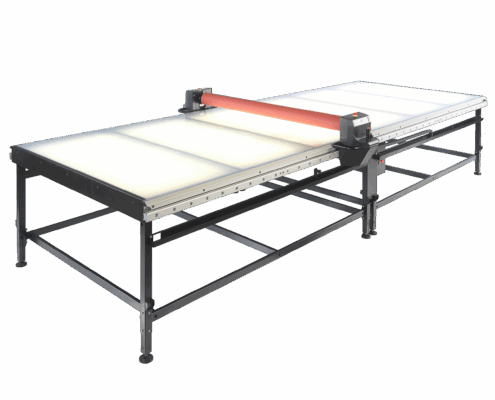

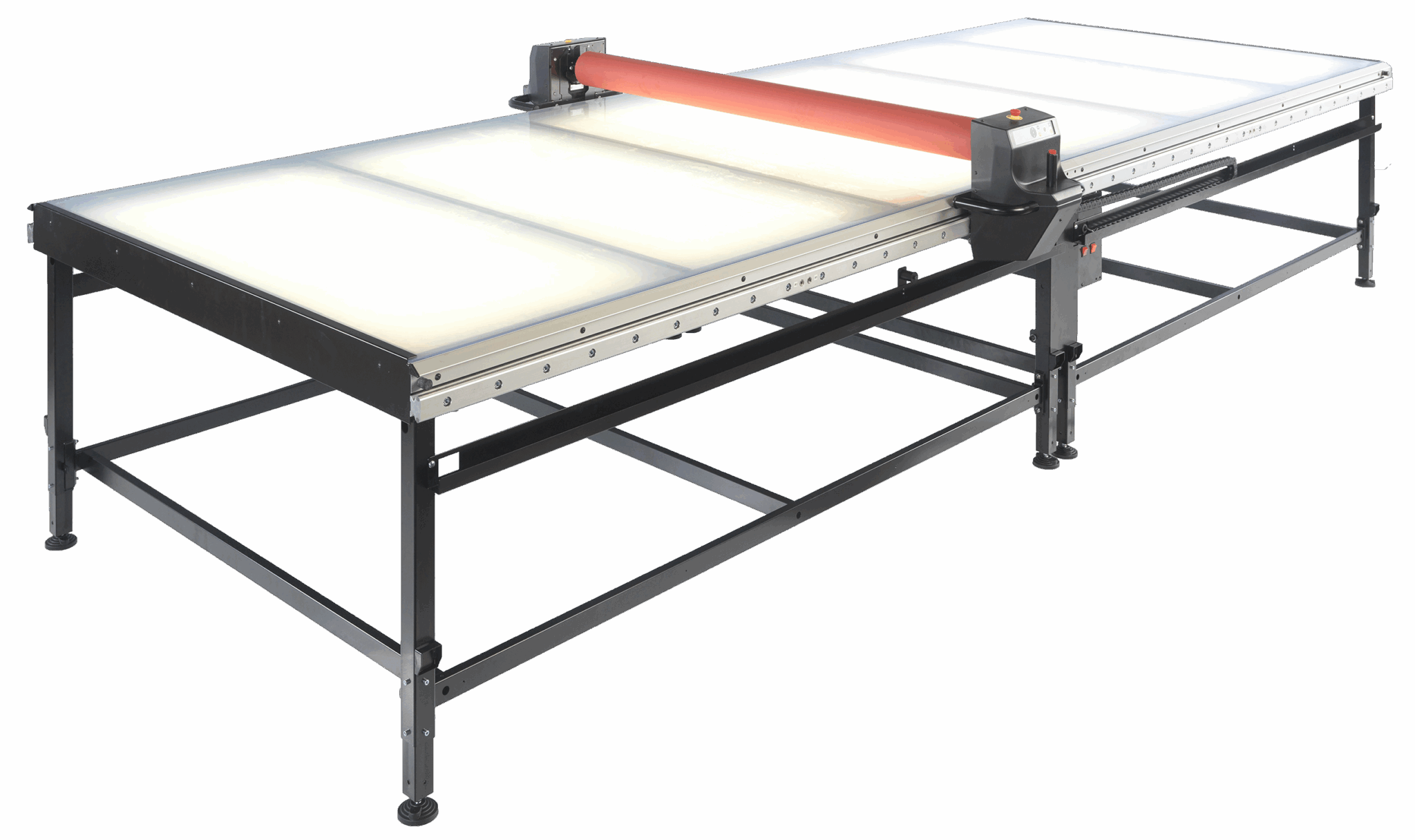

The Kala AppliKator Modular is a Flatbed Laminator that lets you extend its length as your needs evolve — from 4 to 6, 8 meters or more. With a working width of 67″ (1.70m) and an extendable base length starting at 81″ (2.07m), it’s ideal for applying vinyl, films, and rigid panels.

APP 2000 | 4400 | 6800 | 9200

Request a Quote

At a glance.

The Kala AppliKator Modular sets a new standard for precision flatbed mounting and laminating. Built with growing businesses in mind, you can work faster, more accurately, and with complete confidence across signage, display graphics, and window film projects.

Flawless Results,
Every Time

Applicator tables ensure perfect finishes with adjustable pressure at both ends of the gantry and three pre-set levels for precision. The roller remains parallel to the table surface, delivering consistent results—regardless of where the media is placed.

Work Faster,
Save Time

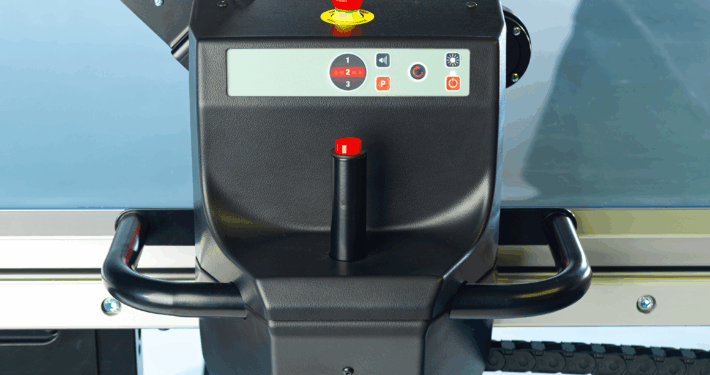

Designed for speed and efficiency, KALA Applicator tables use electric motors to control roller elevation—ensuring smooth, precise adjustments. For added safety, a laser sensor monitors the working area at all times. Plus, with dual controllers, operators can work from either side of the table, streamlining workflow and saving valuable time.

Maximum Working Width: 166 mm (66") - 227 mm (90")

Do More with One Machine

These Lamination tables offer a generous 170 cm working width, ideal for a wide range of applications. Their modular design can be expanded in sections to handle longer media as needed. Additionally, the table height is adjustable during installation—choose between 80, 90, or 100 cm—for optimal operator comfort and workspace integration.

Built to Last

Engineered in France, the KALA Applikator is made for daily use with consistent, long-term performance. LED lighting ensures precision, while durable construction and 10-year parts support make it a smart, lasting investment.

Product Specifications.

Print Specifications

Maximum Media Thickness: 65 mm (2.5″)
Maximum Working Width: 170 mm (67″)

APP 2000
Working Length: 205cm (6’9″)
Total Length: 238cm (7’10”)
Adjustable height*: 80/90/100cm (31.5″, 35.5″ 39″)

APP 4400
Working Length: 443cm (14’6″)
Total Length: 476cm (15’8″)
Adjustable height*: 80/90/100cm (31.5″, 35.5″ 39″)

APP 6800
Working Length: 681cm (23′)
Total Length: 714cm (24″)
Adjustable height*: 80/90/100cm (31.5″, 35.5″ 39″)

APP 9200
Working Length: 919cm (30′)
Total Length: 952cm (31″)
Adjustable height*: 80/90/100cm (31.5″, 35.5″ 39″)

*upon installation

Optional Extras

Supply of Adhesive rolls
APPSUPAXE – Adhesive roll holder
APPFREIN – Adhesive roll holder on an aluminum self-blocking shaft
AX 1650 – Self Blocking Shaft 165cm
BA 1650 30 – Scrolling bar

Storing and Cutting

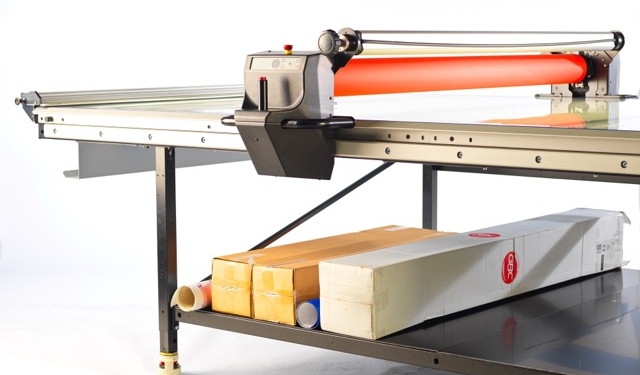

Storing system
Shelf Adaptable on the long or short edge of table
Cutting bar adaptation – removable for series word

LED Lighting System
Directly connected to the power supply of the machine, improves accuracy for the most demanding of jobs

Previous Next

1 2 3 4 5

Tech Spec Brochure Enquire

AppliKator Laminator Modules

	APP 2000	APP 4400	APP 6800	APP 9200
Usable Length	208 cm – 6’10”	455 cm 14′ 6″	683 cm 22′ 5″	921 cm 30′ 3″
Total Length	238 cm 7′ 10″	476 cm 15′ 8″	714 cm 23′ 5″	952 cm 31′ 3″
Usable Width	170 cm – 67″	170 cm – 67″	170 cm – 67″	170 cm – 67″
Total Width	227 cm – 90″	227 cm – 90″	227 cm – 90″	227 cm – 90″
Height	Adjustable upon Installation: 80, 90, 100 cm (2ft 7 1/2″, 2ft 11 12″, 3ft 3 1/3″)	Adjustable upon Installation: 80, 90, 100 cm (2ft 7 1/2″, 2ft 11 12″, 3ft 3 1/3″)	Adjustable upon Installation: 80, 90, 100 cm (2ft 7 1/2″, 2ft 11 12″, 3ft 3 1/3″)	Adjustable upon Installation: 80, 90, 100 cm (2ft 7 1/2″, 2ft 11 12″, 3ft 3 1/3″)
Mounting Thickness	6.5 cm – 2 1/2″	6.5 cm – 2 1/2″	6.5 cm – 2 1/2″	6.5 cm – 2 1/2″
Surface of the Table	Glass Panels	Glass Panels	Glass Panels	Glass Panels
Antistatic PVC mat	Thickness 4mm	Thickness 4mm	Thickness 4mm	Thickness 4mm
Optional Castors	Yes	Yes	No	No
Voltage	110 & 230 V – 50/60Hz	110 & 230 V – 50/60Hz	110 & 230 V – 50/60Hz	110 & 230 V – 50/60Hz
Power	400 W	400 W	400 W	400 W
Weight without LED	300 kg – 660 lb	470 kg – 1040 lb	720 kg – 1590 lb	970 kg – 2140 lb
Shipping dimension without LED – W x D x H	2 Pallets 232 x 72 x 100 cm (93′ x 28″ x 39″) 232 x 72 x 75 cm (93″ x 28″ x 30″)	2 Pallets 232 x 72 x 100 cm (93′ x 28″ x 39″) 232 x 72 x 75 cm (93″ x 28″ x 51″)	3 Pallets [x2] = 232 x 130 x 100 cm (93′ x 28″ x 39″) [x1] = 232 x 72 x 75 cm (93″ x 28″ x 30″)	3 Pallets [x2] = 232 x 130 x 100 cm (93′ x 28″ x 39″) [x1] = 232 x 72 x 75 cm (93″ x 28″ x 51″)
Shipping Weight without LED	400 kg – 882 lb	570 kg – 1250 lb	850 kg – 1875 lb	1150 kg – 2530 lb
