ARKANE 1650

High-performance laminator for industrial UV print finishing

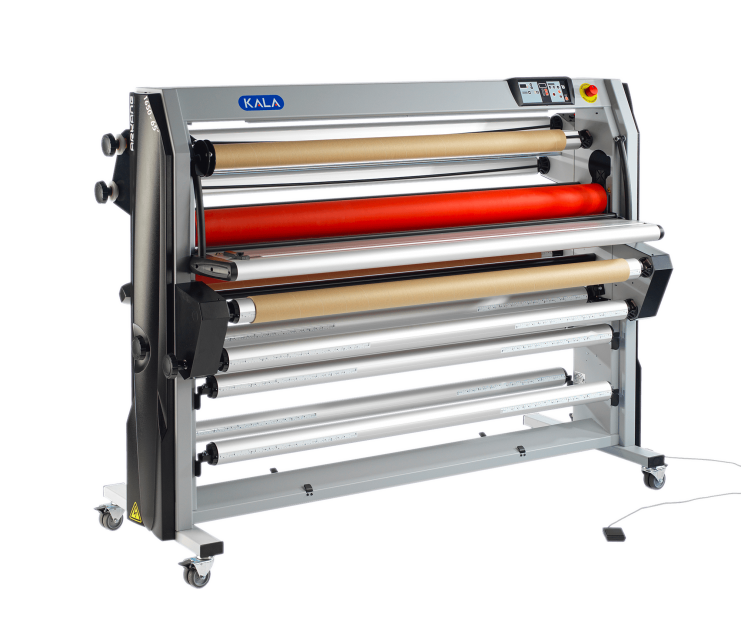

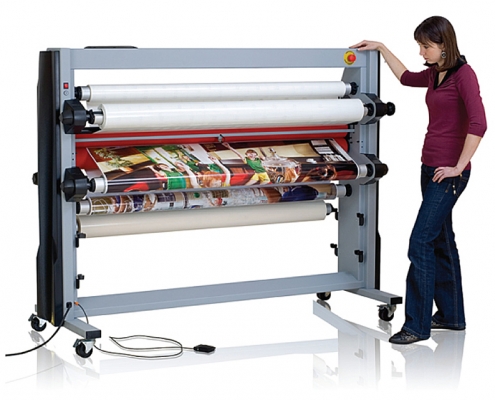

The Kala Arkane 1650 Laminator is a robust, industrial solution designed for precise lamination of UV-printed soft and rigid media. With roll-to-roll operation, a 1.65 m (65″) working width, and an upper heated roller reaching 140 °C (280 °F), it delivers consistent pressure and reliable results for demanding finishing and one-sided thermal film applications.

Versions: Arkane 1650 | 1650 D | 1650 TS

Request a Quote

At a glance.

Wide Media Compatibility

Handles media up to 171 cm wide and 50 mm thick, incredible sealing results with all kinds of print and media, particularly UV prints, even with the largest ink drops and the most irregular surfaces.

Hot & Cold Lamination

Features rollers that heat from 30 °C to 140 °C, allowing precise hot and cold lamination, encapsulation, single-side lamination, and mounting for professional results. The Arkane 1650 D features dual heating for technical works with media that require heat to reactivate adhesive backing.

Auto-Calibration & Pressure Control

The automatic calibration system ensures perfect roller alignment, while adjustable pressure corresponding to the media processed guarantees consistent, high-quality finishes on every job.

High Productivity

Adjustable speeds from 0.3 to 6.5 m / minute to support optional workflow enhancements like inline slitting, LED lighting, and remote control for maximum efficiency.

Product Specifications.

Adjustable Speed

Lamination Speed up to 6.5m/minute (21ft/min)

Adjustable Speed 0.3 – 6.5 m/minute

Specifications

Maximum Media Thickness: 50 mm (2″)
Maximum Working Width: 1710 mm (67″)
Maximum Film Width: 1650 mm (65″)
Maximum Roll Diameter: 119 mm (4.7″)
Heating Roller Temperature: 30°- 140°C
Heating time from Room Temperature to 40°C: 7 minutes

Size

Dimensions: 206 x 82 x 153 cm
Weight: 210 kg
Power Requirements : 1800 W – 230 V 8A – 50-60Hz – Arkane D 3400 W – 230V 16A – 50-60Hz

Optional Extras

Arkane 1650 D: Same as standard Arkane 1650 but includes dual heating top and bottom, for media technical works with media requiring heat to reactivate adhesive backing.

Gas Strut: Provides additional safety by slowing the descent of the table.

Inline Cutting: Includes two indexable cutting heads for trimming laminated documents or film before lamination.

LED Lighting: Ideal for monitoring ongoing work and illuminating the finishing area.

Magnetic Anti-Static Cord: Essential for discharging static electricity generated by certain materials.

Remote Control: Recommended for applications where operators need to work at a distance from the machine.

Graduated Auto-Locking Shaft: Facilitates loading of rolls, usable for storage, and compatible with AppliKator and KalaXY systems.
