ATLANTIC 1050

Versatility and quality for demanding environments

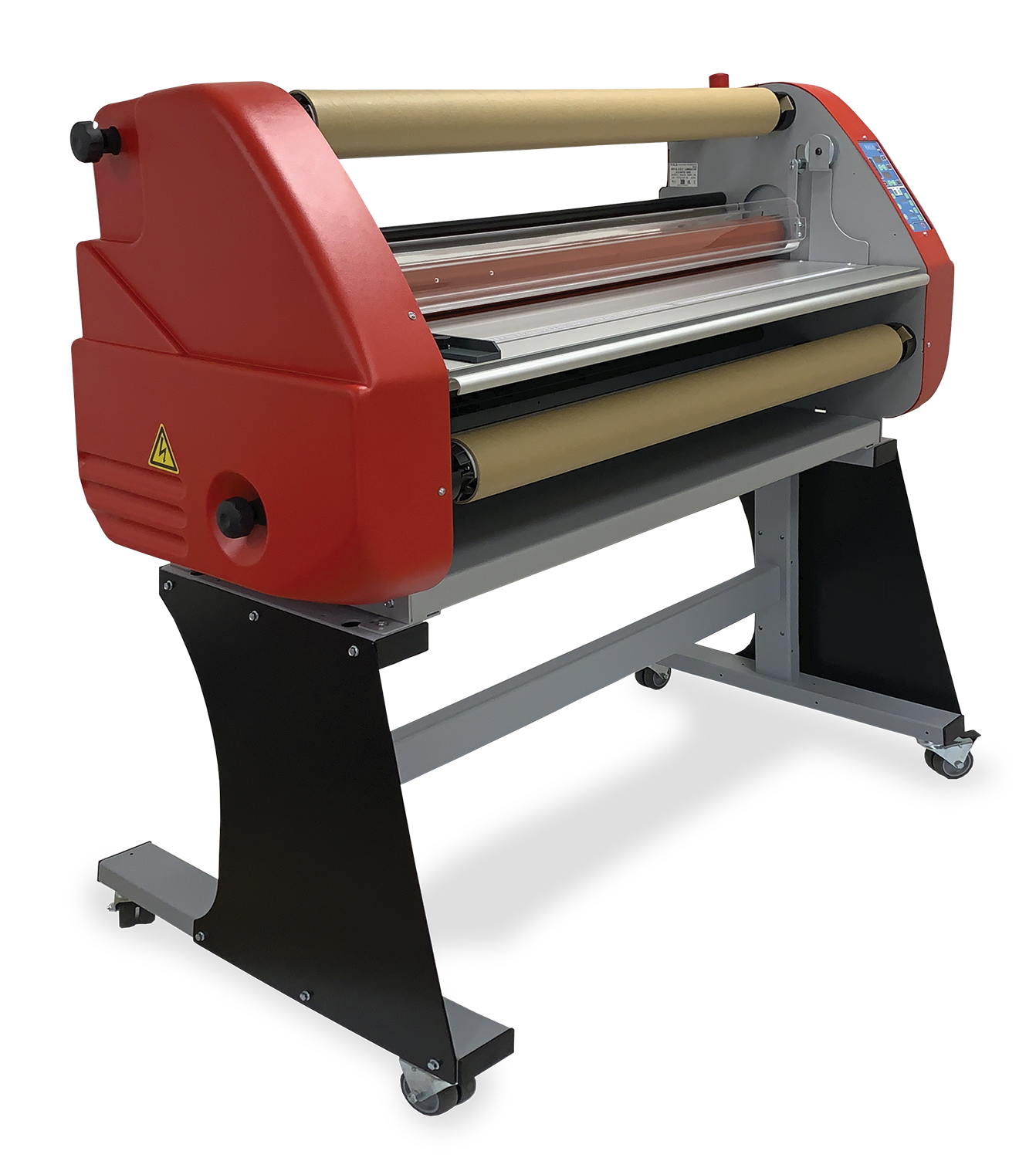

The Kala Atlantic 1080 is a hot-and-cold laminator, offering thermal lamination on the front and cold on the back in one pass. With adjustable top and bottom rollers, it handles single-side lamination, mounting, and encapsulation on boards up to 25 mm thick.

MODELS: Atlantic 1080 | Atlantic 1650

Request a Quote

At a glance.

Wide Media Compatibility

A laminator for multiple applications with thermal and pressure sensitive adhesive film.

Hot & Cold Lamination

Features rollers that heat from 20°C to 140°C, single-side lamination, encapsulation with pressure-sensitive adhesive in one pass, pre mask, mounting up to 25 mm thick, and use of polyester thermal film for encapsulation.

In Line Slitting

The Atlantic 1080 features integrated cutter blades that allow precise in-line slitting of your prints between the rollers during lamination, streamlining workflow and ensuring clean, professional results.

High Productivity

Lamination speed up to 3  m/min on working widths of 108 cm. There is the option to add an electric winder for space saving and preserving work.

Product Specifications.

Adjustable Speed

Lamination Speed up to 3 m/minute (10ft/min)

Specifications

Maximum Media Thickness: 25 mm (1″)
Maximum Working Width: 1080 mm (42″)
Maximum Film Width: 1100 mm (43″)
Maximum Roll Diameter: 78 mm (3″)
Heating Roller Temperature: 20°- 140°C
Heating time from Room Temperature to 100°C: 20 minutes

Size

Dimensions: 142 x 76 x 132 cm
Weight: 185 kg
Power Requirements: 3100 W – 230V 14A – 50-60Hz

Optional Extras

Electric rewinder: Practical for saving space, collecting and preserving work output. The laminated material gets rewound automatically on a core, waiting for the next finishing process.
