Designjet Z9+ 44″

Dual Roll with V Trimmer

Deliver professional photo quality prints faster and simpler.

At a glance.

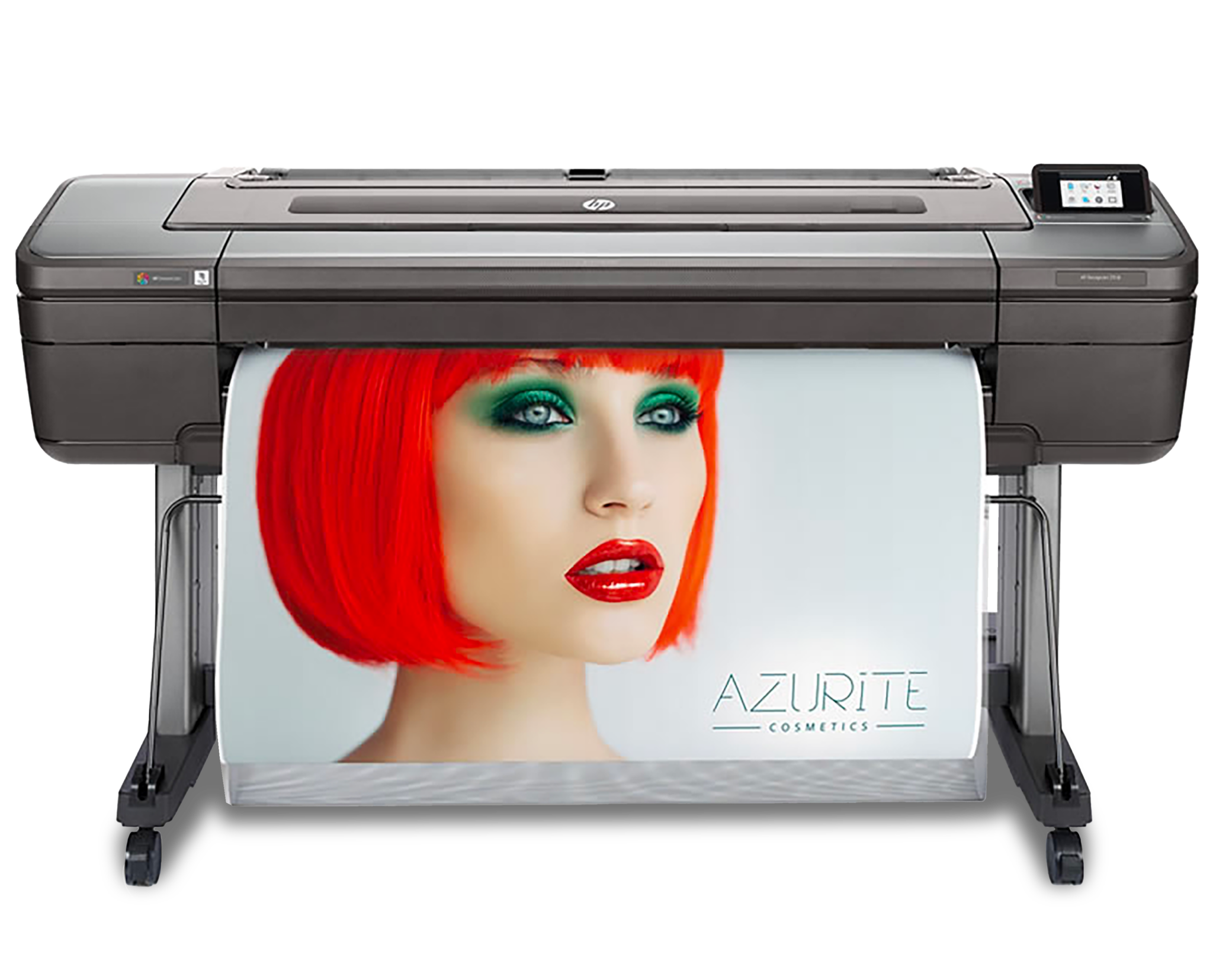

The HP DesignJet Z9+ 44″ dual roll printer with vertical trimmer delivers outstanding image quality and efficiency. Achieve smooth transitions, sharp details, and precise colours with the embedded spectrophotometer, while the built-in vertical trimmer reduces post-processing labour by up to 20%, eliminating manual cutting and streamlining production.

Colour Accuracy

Produce consistent and accurate colours across prints with the HP DesignJet Z9+ it comes with an embedded Spectrophotometer that ensures the best colour consistency and colour accuracy, enabling a wider range of media by allowing you to produce your own ICC profiles.

More Quality Made Faster

Now you can say yes to more clients and not worry about deadlines. Experience printing up to 2.5 times faster without losing quality, and reduce post-processing labour time by up to 20% with the first integrated vertical trimmer.

Simple Maintenance

HP DesignJet Z9+ 44″ printer uses five individual universal printheads. These printheads are affordable and can be replaced easily by users, thus reducing downtime and the need for external technical support. As each universal printhead is compatible with any of the nine inks, users do not need to stock up on printheads for specific colours.

Product Specifications.

Speed

Print Speed:

Fast: 71.4 m²/hr on plain media
Normal: 17.2 m²/hr on coated media
Best: 4.5 m²/hr on glossy media

Print Specifications

Ink Types: Pigment-based
Ink Droplet Volume: 7/3 pl dual-drop weight (M, C, PK, CB, G); 6 pl single-drop weight (Y, CR, MK, CG)
Printheads: 5 universal printheads (valid for all colours)
Printhead Nozzles: 2112 per colour; 21,120 in total
Printing Resolution: Up to 2400 x 1200 optimised dpi

Paper/Media Handling

Handling: Dual-roll: Two automatic roll feeds, smart roll-switching, top sheet feed, media output bin, automatic horizontal cutter and vertical trimmer (cuts all HP Z-series printer-qualified media, including most canvas)
Roll size: 279 to 1118-mm
Sheet Size: 210 x 279 to 1118 x 1676 mm
Standard Sheets: A4, A3, A2, A1, A0
Grammage: 80 to 500 g/m²
Thickness: Up to 0.8 mm

Dimensions

Width: 1,802mm
Height: 998mm
Depth: 695mm
Weight (without ink cartridge): 72-98kg
