HP Latex 830 Series

High-Performance, Professional Printing

The HP Latex Printer Series the 830 & 830W, deliver high-speed, high-quality output for demanding print environments. With wide-format support, 3-litre cartridges, and advanced features like white ink (830W), instant-dry prints, and automated double-sided printing, they’re ideal for vehicle wraps, wallcoverings, and more. Eco-friendly and EPEAT Climate+ certified, they combine productivity with sustainability.

Book a Demonstration

At a glance.

$HP Latex 730 and 830 Printer Series - graphics$

High Productivity and Speed

The HP Latex 830 series offers impressive productivity, reaching speeds up to 36 m² per hour in 4-pass mode. Moreover, spindle-less front loading with automatic skew check streamlines media handling, allowing quick setup for urgent jobs. Combined with instant-dry prints, users can move straight to finishing and delivery—ensuring faster turnaround times and greater workflow efficiency.

Advanced Printing Technology

With HP Pixel Control and innovative non-circular nozzle printhead architecture, these printers deliver vivid colours, sharp details, and uniform results. Additionally, the built-in HP Embedded Spectrophotometer ensures consistent quality over time and across devices, while enabling users to create custom ICC profiles for accurate colour matching.

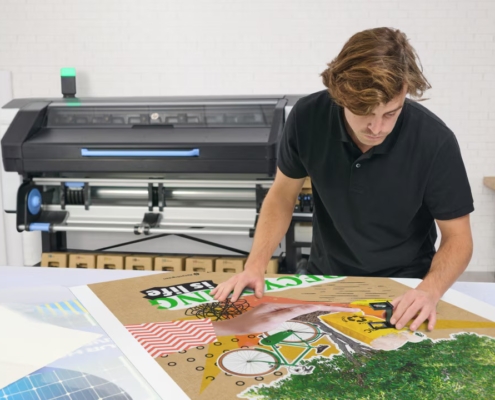

Sustainability and Waste Reduction

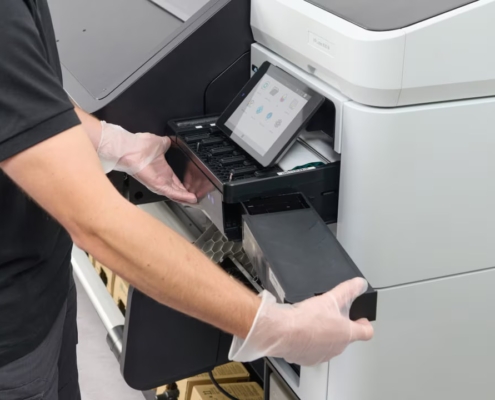

The HP Latex 830 series supports environmentally responsible printing with EPEAT Climate+ certification and odorless, UL ECOLOGO®-certified water-based inks. In addition, waste is reduced through returnable supplies—such as ink bags and printheads—via the HP Planet Partners program. The extended-life maintenance cartridge, lasting 50% longer, further minimises replacements and enhances efficiency.

$Hp latex 830 and 730 series - easy to use$

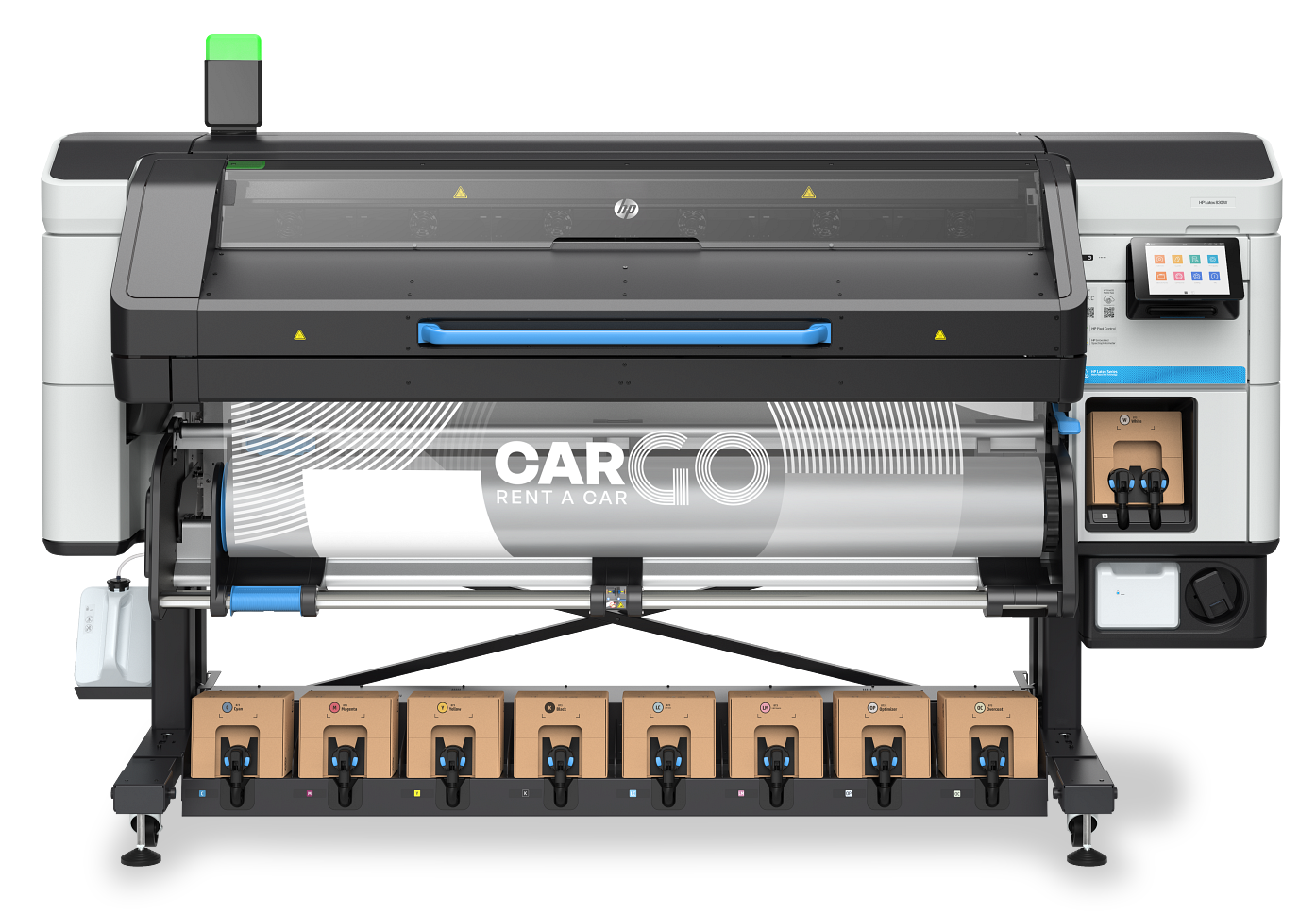

Versatility and White Ink Capability

The HP Latex 830 W model adds white ink functionality with automatic recirculation, reducing waste while maintaining consistent performance. Furthermore, both models support a broad range of applications—from vehicle wraps and window graphics to wallcoverings and retail displays—delivering vibrant colours, opaque whites, and durable results ideal for high-value projects.

Product Specifications.

Speed

Speed of Standard Quality:

388 ft²/hr (36 m²/hr) Standard (4-pass)

269 ft²/hr (25 m²/hr) Standard (6-pass)

215 ft²/hr (20 m²/hr) Standard (8-pass)

Printing Resolution:

Colour: 1.200 x 1.200 dpi

Print Specifications

Ink Types:

Water based HP Latex inks

Colours:

HP Latex 830: Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Optimiser, Overcoat

HP Latex 830W: Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Optimiser, Overcoat, White

Cartridge Size:

3 L

Printheads:

HP Latex 830: 8 (7 HP Latex Printhead, 1 HP Latex Optimiser)

HP Latex 830W: 10 (7 HP Latex Printheads, 1 HP Latex Optimiser, 2 HP White Printhead)

Paper/Media Handling

Finished Output Handling:

Roll feed, take-up reel, wiper roller[3], media saver, automatic horizontal cutter (for vinyl, banner and canvas[4], paper-based media, and film)

Media Types:

Banners, self-adhesive vinyls, films, fabrics, papers, wall coverings, canvas, synthetics, mesh, textiles

Roll Size:

457 to 1625-mm rolls (580 to 1625-mm rolls with full support)

Maximum Roll Weight:

55 kg

Thickness:

Up to 0.5 mm

Applications:

Banners; Displays; Exhibition and event graphics; Exterior signage; Indoor posters; Interior decoration; Light boxes – film; Light boxes – paper; Murals; POP/POS; Posters; Textile; Vehicle graphics; Window graphics; Stickers

Dimensions

Printer

Width: 2583mm
Height: 1,402mm
Depth: 866mm
Weight (without ink cartridge):

HP Latex 830:292kg

HP Latex 830W:300kg

Inks & Printheads

Recommended Original HP printing supplies:

TECH SPEC BROCHURE Enquire

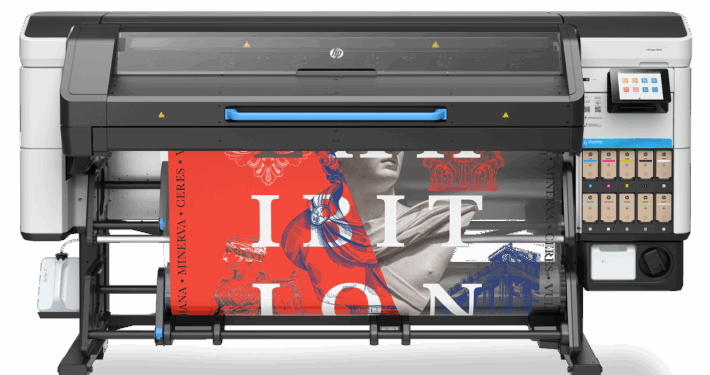

HP Latex 730 and 830 Printer Series



HP Latex 730	HP Latex 730 W	HP Latex 830	HP Latex 830 W
Core Features	Core Features	Core Features	Core Features
64 in (1.63 m) maximum media width	64 in (1.63 m) maximum media width	64 in (1.63 m) maximum media width	64 in (1.63 m) maximum media width
1 litre ink cartridges	1 litre ink cartridges	1 litre ink cartridges	1 litre ink cartridges
No White Ink	No White Ink	No White Ink	White Ink
Maximum roll 121lb (55kg)	Maximum roll 121 lb (55kg)	Maximum roll 121 lb (55 kg)	Maximum roll 121 lb (55kg)
Speed of standard quality 4 pass: 334 ft²/hr (31 m²/hr)	Speed of standard quality 150 ft2/hr (14 m²/hr) Standard (6-pass)	Speed of standard quality 150 ft2/hr (14 m²/hr) Standard (6-pass)	Speed of standard quality 150 ft2/hr (14 m²/hr) Standard (6-pass)
Printer Specification Datasheet	Printer Specification Datasheet	Printer Specification Datasheet	Printer Specification Datasheet
HP Latex 730	HP Latex 730W	HP Latex 830	HP Latex 830W

Why Upgrade to the HP Latex 830 Printer Series.

Advanced White Ink Capability

The HP Latex 830W offers efficient white ink printing with automatic recirculation to reduce waste and maintenance. It supports multiple white modes with densities up to 260% and stores printheads offline to save ink. A new drying system also boosts white print speeds by up to 30%, making it ideal for vivid, high-impact applications.

Precision Text Printing

The HP Latex 830 ensures sharp, accurate text with advanced printhead technology, HP Pixel Control, and consistent colour calibration. These features work together to deliver clean, readable results—even on fine details and small fonts.

Improved Print Quality

The series uses HP Latex Inks and HP Pixel Control technology to deliver vibrant colours, sharp text, and, as a result, consistent quality across prints.

Vivid Colours and Sharp Details

The latest generation of HP Latex Inks and non-circular nozzle printhead architecture delivers vibrant colours and sharp 4-point text.

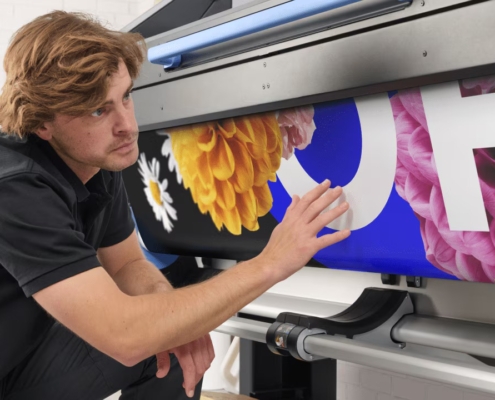

Consistent Colour Uniformity

HP Pixel Control technology ensures precise ink combination and distribution. As a result, it delivers stunning prints with uniform colour.

Color Precision

HP Embedded Spectrophotometer: This tool helps achieve consistent quality over time and between printers, allowing users to create custom ICC profiles for accurate colour matching

Open the door to more Applications and Increased Margin.

Vehicle Wrapping

Designed for fast, flawless installation, the HP Latex 830’s instant-dry inks stretch easily across surfaces while providing vibrant colours, strong adhesion, and impressive visual impact.

Window Graphics

Wallcovering

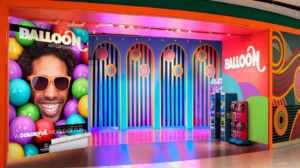

Retail Decoration
