Epson logo

SC T3405 Series

24″ Technical Printer

The 24-inch technical printer for professionals looking for reliability and cost saving, with high-quality precision printing inhouse.

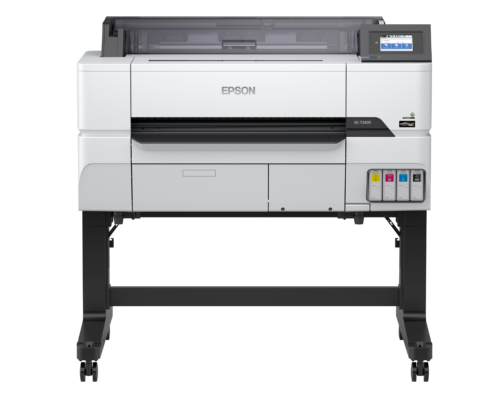

Epson SC T3405 Printer

At a glance.

Eson T3405N

Ease of use

The range is easy to use and intuitive for all types of users, using a suite of apps and clever hardware features, including wireless printing, enabling users to print directly from smartphones or tablet devices.

Accuracy and Precision

Print technical, architectural and engineering drawings in great detail, with ease. With its Unique Nozzle Verification Technology (NVT) that helps prevent misprints


Clean Design

It uses UltraChrome XD2 pigment inks which means your prints are smudge and water-resistant in addition, the SC-T3405 delivers deep blacks and crisp, dense lines — ideal for technical graphics.

T series print example


Small and compact in its design

It can seamlessly change between LFP roll and sheet feed as this printer supports up to A1 cut sheets as well as rolls.

Product Specifications.

Printing Resolution: 2.400 x 1.200 dpi

Colours: Black [Pigment], Cyan [Pigment], Yellow [Pigment], Magenta [Pigment].

Nozzle Configuration: 800 Nozzles Black, 800 Nozzles per Color

Minimum Droplet Size: 4 pl, With Variable-Sized Droplet Technology
Colour Capacity: Black, Cyan, Yellow, Magenta – 11oml, 350ml, 700ml

Paper Formats: A1, A2 (42.0×59.4cm), A2+, A3+, A3 (29.7×42.0 cm), A4 (21.0×29.7 cm), B1 (72.8×102.8 cm), B2 (51.4×72.8 cm), B3, B4, B5, 17″, 24″
Print Margins Sheet Media:
Mode 1: 3 mm (top), 3 mm (right), 3 mm (bottom), 3 mm (left)
Print Margins Roll Media:
Mode 1: 3 mm (top), 3 mm (bottom)
Compatible Paper Thickness: 0.05 mm – 0.03 mm

Width: 1,080mm
Height: 1,060mm
Depth: 750mm
Weight (without ink cartridge):  49kg

Epson SC T3405 Series – Technical Printers

ProductEpson SC-T3405Epson SC-T3405N
24″ Large format printer – technical.
(with stand)
24″ Large format printer – technical.
(No stand)
Key FeaturesPOP Draft Mode
Print A1 posters in as little as 24 seconds
Unobtrusive design
Wireless printing
POP Draft Mode
Print A1 posters in as little as 24 seconds
Unobtrusive design
Wireless printing
Paper Size 24″24″
Ink Cartridge Volume (ml)110ml/350ml/700ml ink cartridges110ml/350ml/700ml ink cartridges
Speed Throughout (Sec)2727
First Page OutMonochrome 25 Seconds, Colour 25 SecondsMonochrome 25 Seconds, Colour 25 Seconds
Media Maximum Diameter170170
Paper core2″ 3″2″ 3″
Minimum Line Width0.02mm0.02mm
Print Specification Datasheet T3405-Tech SpecT3405N-Tech Spec
