Epson SC T5700D

Compact Technical Printers

A high-performance printer featuring Adobe PostScript 3 integration, dual rolls capability, and pigment ink cartridges in Pk, Mk, CMY, and Red. Leveraging the power of Adobe PostScript 3 and the 6-colour UltraChrome XD3 pigment ink system, it ensures top-tier printed image quality, ideal for posters and temporary outdoor advertising with vibrant colours. Additionally, it boasts 28 security features such as NFC, PIN, and Password authentication, along with an Epson on-site warranty for added protection

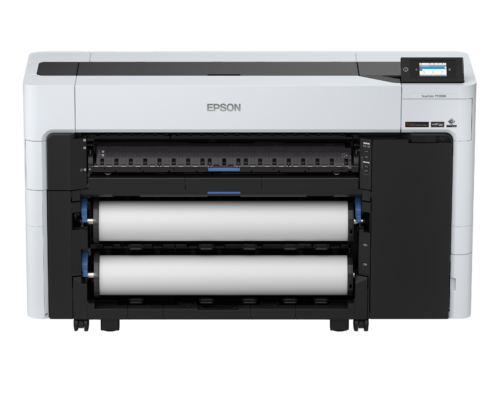

Epson SC T5700D Printer

At a glance.

T series print example

High Productivity

Fast, versatile and secure printing from PC, mobile and USB.  Its enhanced security features protect your highly confidential documents with ease.


High Image Quality

Sharp detailed prints thanks to Adobe PostScript 3 as standard, combined with speeds upto 130 m2/hr.

Ideal for Retail

Simple media reload using the automatic loading feature, reprint files from the self-encrypting and the ability to replenish consumables by following instructions on the user interface.

Compact Footprint

The SC-T5700D is compact, simple and functional. The flat top design means it is easy to proof prints as soon as they are finished. All consumables and media are loaded from the front for ease.

Product Specifications.

Printing Resolution – Draft: 300 x 600 DPI
Printing Resolution – Maximum Quality: 2,400 x 1,200 DPI
Printing Resolution – Speed:  300 x 600 DPI

Colours: 6 Colour – UltaChrome XD3

Colour Capacity: Photo Black [350ml, 700ml], Matte Black [350ml, 700ml], Cyan [350ml, 700ml], Yellow [350ml,
700ml], Magenta [350ml, 700ml], Red [350ml, 700ml]

Minimum Droplet Size: 3.5 pl, With Variable-Sized Droplet Technology

Printable Length: up to 91m max length

Roll Capacity: 2 Rolls (upto 170mm diameter – 10.2kg each)

Automatic roll loading/feeding, Auto switching, Auto take up

Paper Formats:  17″ (43.2 cm) Roll, 24″ (61.0 cm) Roll, 36″ (91.4 cm) Roll, Custom width and length, A0, A1,
A2+, A3+, A4 (21.0×29.7 cm)

Width: 1645mm
Height: 975mm
Depth: 499mm
Weight (without ink cartridge):  136kg

Epson SC SureColor T5700D – Compact Technical Printer

Epson SC T5700D
Epson SC T5700DM-MFP
Compact Technical Printers
36″ / 910mm
Key Features
Paper Size36″
Ink Cartridge Volume (ml)350ml / 700ml
Media Handling RollDual Roll
Media Handling cut SheetA4 – A0
Minimum Line Width0.26mm
Line Accuracy+/- 0.1
Print Specification DatasheetT5700D-Tech Spec

T5700DM-MFP-Tech Spec
