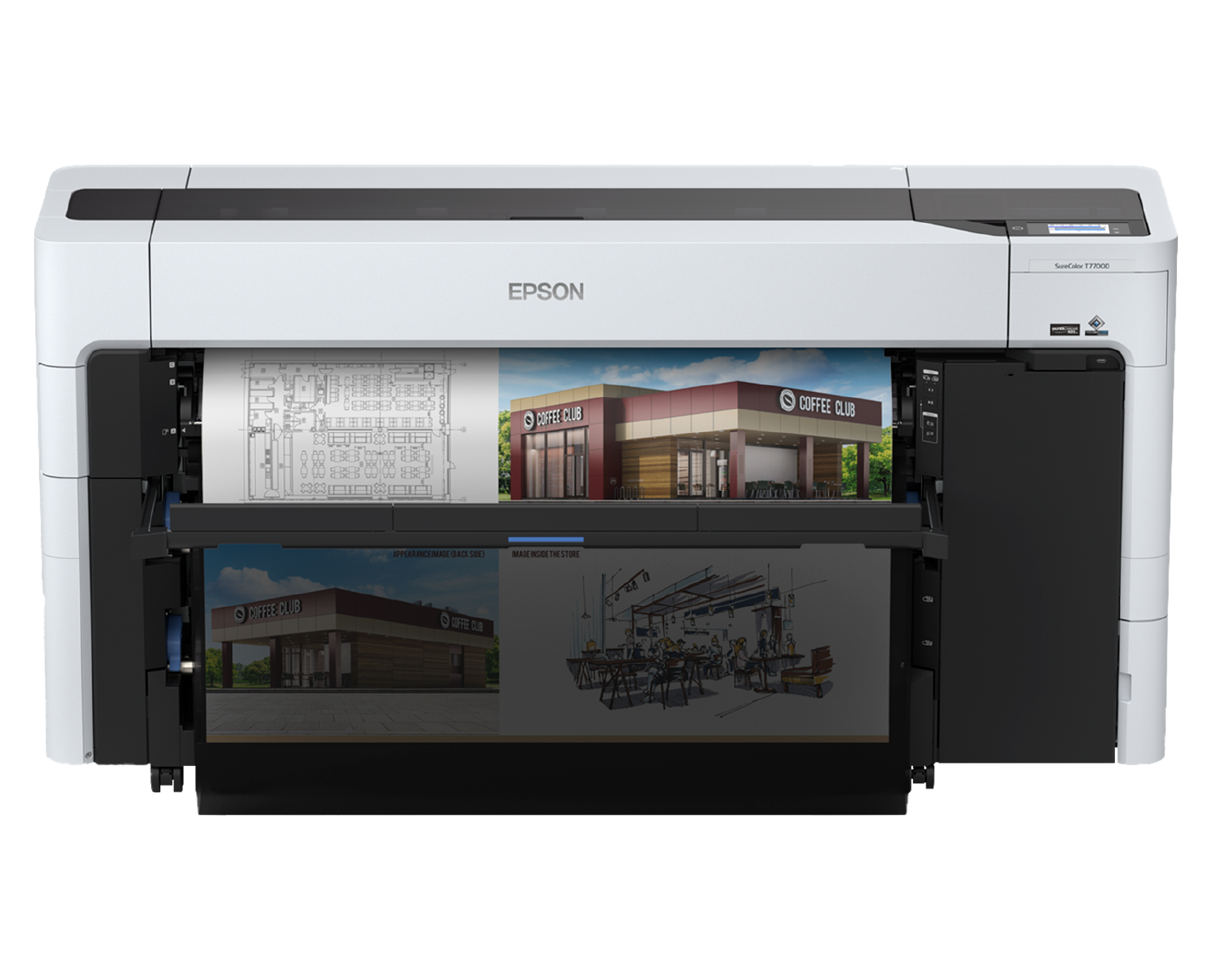

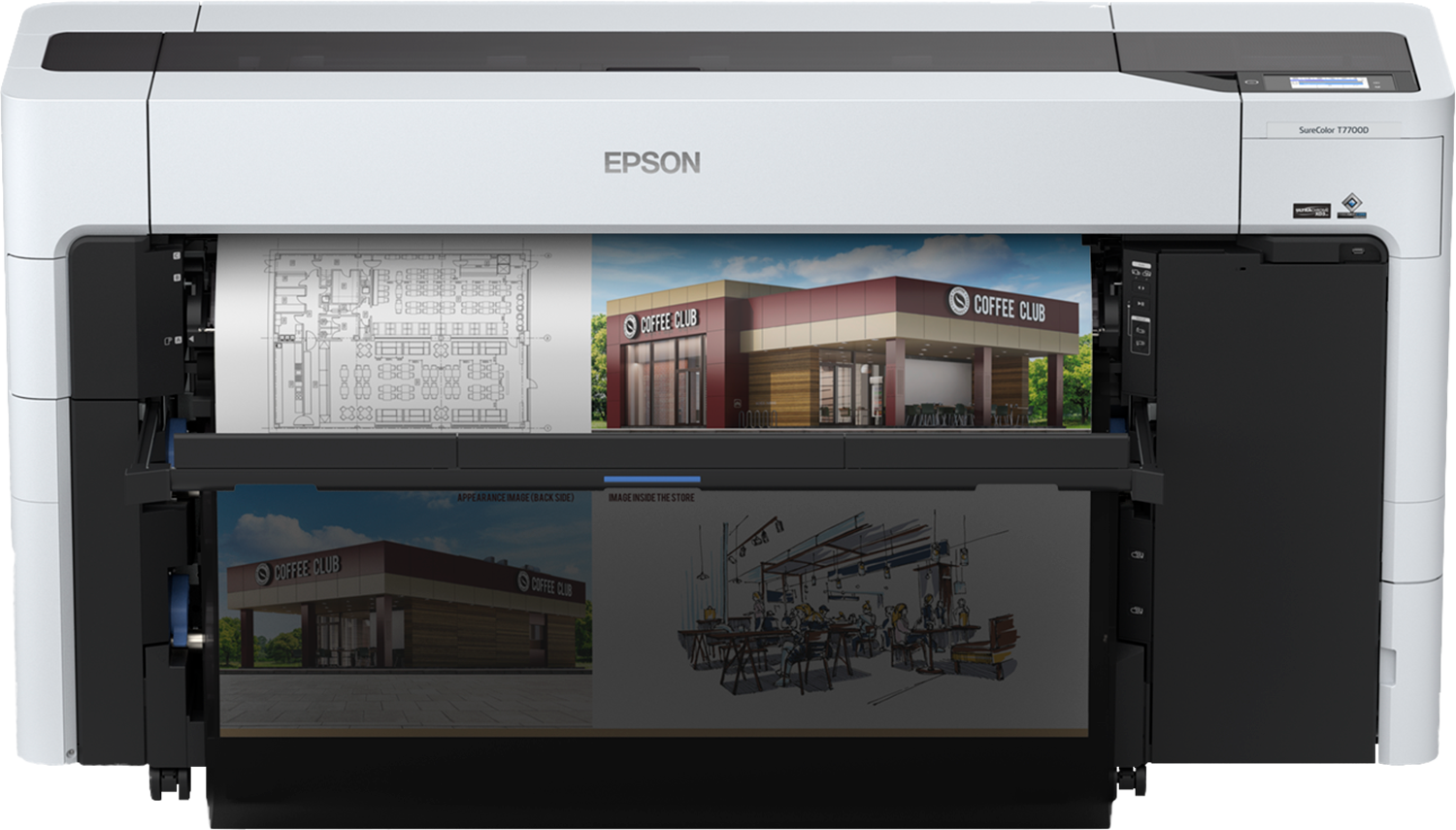

SC T7700 Series

High Volume Printers

This fully integrated high volume printer offers highly secure productive printing, smart features and easy operation. It features 6-colour UltraChrome XD3 all-pigment inks, including a new red ink that broadens the colour gamut. High printing speeds and a dual-roll facility also boost productivity.

ENQUIRE NOW

Free 5-Year Extended Warranty

on the T7700 D & DM models until 30th September 2025

At a glance.

Fast and adaptable

High speeds up to 130 m2/hr, water-resistant pigment inks, automatic media switching and bi-directional auto take-up reel.

High Volume Printer

The SC-T7700DL boasts 1.6L ink packs, versatile dual rolls and a permanent 2.64-inch micro TFP printhead. The features result in a durable high-volume printer for customers who need speed, consistent image quality and security.

Ideal for Print Rooms

The contemporary and versatile design makes them ideal for copy shop and print room environments, with a flat back, front and sides that allows installation tightly against walls and cabinets. Save regularly used files securely on the encrypted 960GB SSD1. Monitor usage and consumables remotely

Compact Footprint

These compact technical printers are both contemporary and compact. They fit into most working environments because of their flat and unobtrusive design, which is both space saving and practical.

Product Specifications.

Speed

Printing Resolution: 2.400 x 1.200 dpi

Line drawing: Roll – up to 130 m2/h / Cut sheet – as fast as A1 16 seconds

Poster: A1 – as fast as 21 seconds (draft mode 300×600 dpi)

Print Specifications

Colours: 6 Colour – XD3 Pigment

Ink Colours: CMY, MK, PK, Red

Nozzle Configuration: Micro TFP Piezo – 24 channels (4 per colour) – 400 nozzle per channel – protected by Nozzle Verification Technology

Colour Capacity : 350ML / 700ML and the T7700 DL takes 1.6L

Paper/Media Handling

Printable Length: up to 91m max length

Roll capacity: 2 Rolls (upto 170mm diameter – 12.5kg each)

Automatic roll loading/feeding, Auto switching, Auto take up

Roll 0.07mm-0.8mm – Cut sheet 0.07mm-0.8mm – Board 1.5mm

Roll Handling: 10-44-inch Cut sheet A4-B0+

Dimensions

T7700D, T7700DL

Width: 1848mm
Height: 975mm
Depth: 499mm
Weight (without ink cartridge): 155kg

Brochure Enquire

Epson SC SureColor T Series – Compact Technical Printers

Product
	Epson SC T7700D	Epson SC T7700DL

Key Features
Media Handling	up to 91m max length	up to 91m max length
Ink Cartridge Volume (ml)	350ml / 700ml	1.6 Litre
Media Handling Roll	Dual Roll 10-44-inch	Dual Roll 10-44-inch
Media Handling Cut Sheet	A4-B0+	A4 – B0+
Minimum Line Width	0.02mm	0.02mm
Line Accuracy	+/- 0.26	+/- 0.26
Print Specification Datasheet	T7700D-Tech Spec	T7700DL-Tech Spec
